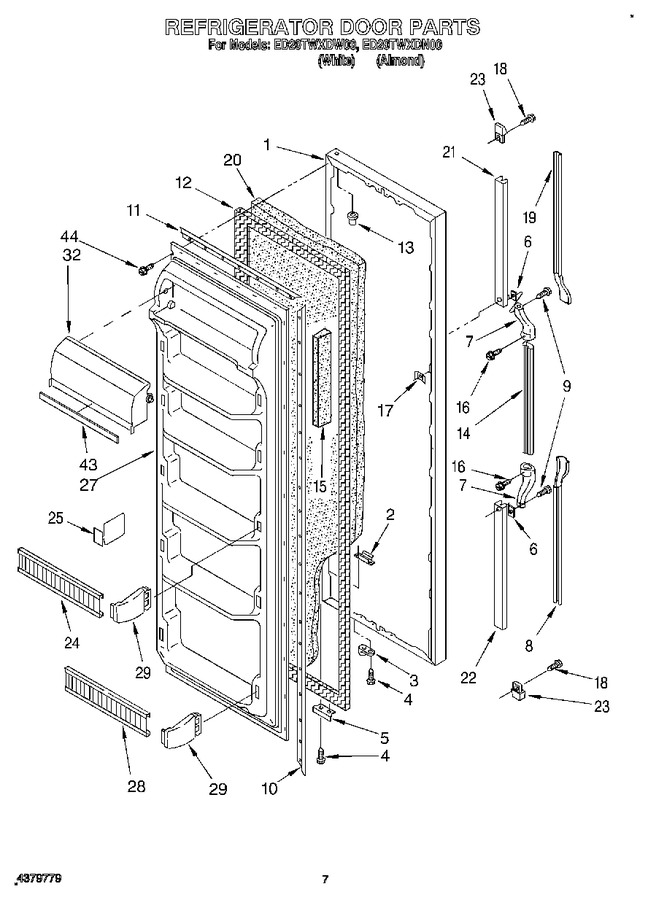

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362040		Refrigerator Door Panel (white)		Appelez-nous	-
1	4362041		Refrigerator Door Panel (almond (also Order Item 20))		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
4	WP999367		Screw   (Replaces: 489367)				$ 8.56
5	2155332		Bracket, Door Stop		Appelez-nous	-
6	935075		Shim		Appelez-nous	-
7	1119359		End Cap (2)		Appelez-nous	-
8	1119363		Insert, Bottom (almond)		Appelez-nous	-
8	1119361		Insert, Bottom (white)		Appelez-nous	-
9	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	943079		Handle, Center (almond)		Appelez-nous	-
14	1124713		Handle, Center (white)		Appelez-nous	-
15	2152266		Reinforcement, Shelf		Appelez-nous	-
16	489022		Screw		Appelez-nous	-
17	941242		Screw Anchor		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	1119367		Insert, Top (white)		Appelez-nous	-
19	1119369		Insert, Top (almond)		Appelez-nous	-
20	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
21	1119366		Insert Retainer (top)		Appelez-nous	-
22	1119360		Insert Retainer (bottom)		Appelez-nous	-
23	2156220		End Cap (2)		Appelez-nous	-
24	2170586		Trim, Door Shelf (2)		Appelez-nous	-
25	2160050		Divider, Shelf		Appelez-nous	-
27	1124961		Interior Door Panel (also Order Item No.15)		Appelez-nous	-
28	2170587		Trim, Door Shelf (2)		Appelez-nous	-
29	4388286		Retainer, Door Trim (8)   (Replaces: 1124877)				$ 16.10
32	2174901		Door, Compartment		Appelez-nous	-
43	2162896		Trim, Door Compartment		Appelez-nous	-
44	WP489069		Screw, (30)   (Replaces: 489101)			Immediately	$ 8.40
