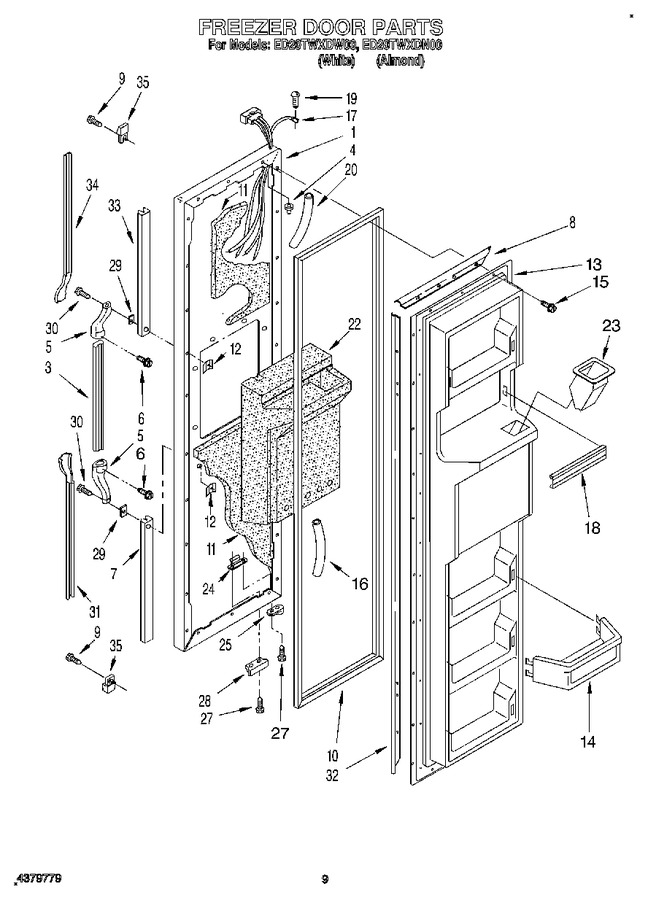

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1115235		Freezer, Door Panel (white)		Appelez-nous	-
1	1115238		Freezer, Door Panel (almond (also Order Item 11))		Appelez-nous	-
3	943079		Handle (almond)		Appelez-nous	-
3	1124713		Handle (white)		Appelez-nous	-
4	939886		Cap, Hinge Sleeve		Appelez-nous	-
5	1119359		End Cap		Appelez-nous	-
6	489022		Screw		Appelez-nous	-
7	1119360		Insert Retainer (bottom)		Appelez-nous	-
8	1117767		Retainer, Gasket		Appelez-nous	-
9	489075		Screw		Appelez-nous	-
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP939101		Screw Anchor (3)   (Replaces: 939101)				$ 7.88
13	1125649		Panel, Interior Door		Appelez-nous	-
14	2170705		Trim, Door Shelf (4)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
16	2147080		Tube, Water Line		Appelez-nous	-
17	2179915		Harness, Door		Appelez-nous	-
18	2170582		Trim, Door Shelf		Appelez-nous	-
19	WP488234		Screw   (Replaces: 489422)				$ 7.08
20	1119059		Tube, Door Wiring		Appelez-nous	-
22	1115206		Insulation, Dispenser		Appelez-nous	-
23	987188		Chute, Ice		Appelez-nous	-
24	2155335		Tap, Plate		Appelez-nous	-
25	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
27	WP999367		Screw   (Replaces: 489367)				$ 8.56
28	2155332		Bracket, Door Stop		Appelez-nous	-
29	935075		Shim		Appelez-nous	-
30	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
31	1119361		Insert, Bottom (white)		Appelez-nous	-
31	1119363		Insert, Bottom (almond)		Appelez-nous	-
32	1117766		Retainer, Gasket				$ 36.55
33	1119366		Insert Retainer (top)		Appelez-nous	-
34	1119369		Insert, Top (almond)		Appelez-nous	-
34	1119367		Insert, Top (white)		Appelez-nous	-
35	2156220		End Cap		Appelez-nous	-
NI	WP488787		Screw   (Replaces: 488886)				$ 11.26
