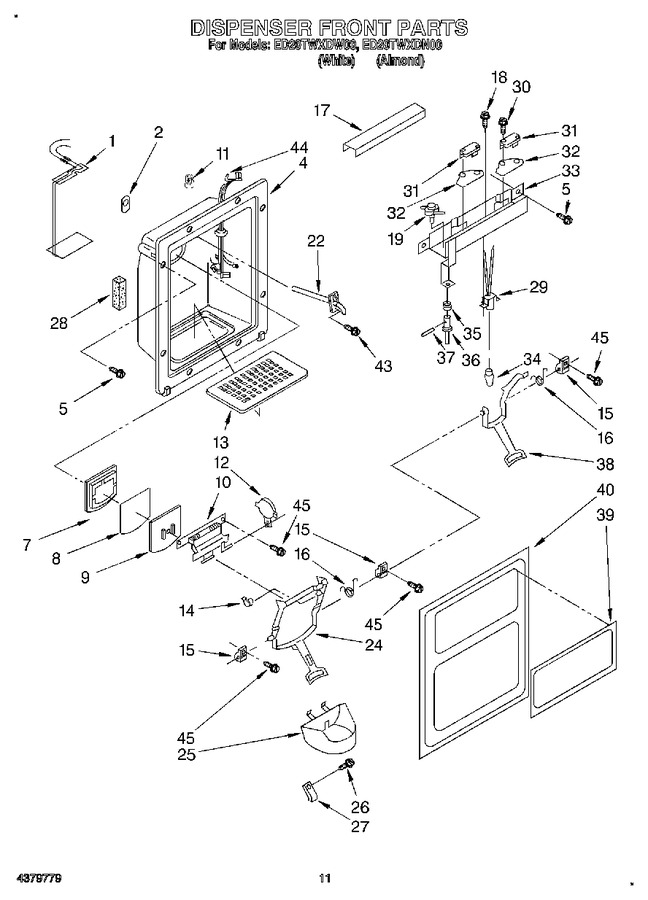

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2154789 | Heater, Dispenser |
|
- | |||||
| 2 | 987048 | Grommet |
|
- | |||||
| 4 | 1125969 | Housing, Dispenser (almond) |
|
- | |||||
| 4 | 1124715 | Housing, Dispenser (white) |
|
- | |||||
| 5 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 7 | 983691 | Gasket, Door |
|
$ 6.61 | |||||
| 8 | 987121 | Shield, Ice Door |
|
$ 5.91 | |||||
| 9 | 983690 | Door, Ice |
|
$ 11.13 | |||||
| 10 | 938669 | Door Mechanism Assembly |
|
- | |||||
| 11 | 227991 | Wire Connector |
|
- | |||||
| 12 | WP1120581 | Mechanism Delay (Replaces: 1120581) |
|
$ 223.72 | |||||
| 13 | 1126121 | Grille, Overflow (almond) |
|
- | |||||
| 13 | 1126120 | Grille, Overflow (white) |
|
- | |||||
| 14 | 987917 | Clip, Bearing (2) |
|
- | |||||
| 15 | 983697 | Bearing, Lever (3) |
|
- | |||||
| 16 | 983696 | Spring, Lever (2) |
|
$ 21.26 | |||||
| 17 | 984494 | Shield, Wiring |
|
- | |||||
| 18 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 19 | 851386 | Switch, Light |
|
- | |||||
| 22 | WP4388152 | Water Fitting Assembly (Replaces: 2157744) |
|
$ 290.25 | |||||
| 24 | 2177144 | Lever, Ice Dispenser (white) |
|
$ 42.05 | |||||
| 24 | 2177145 | Lever, Ice Dispenser (almond) |
|
- | |||||
| 25 | 1125977 | Guide, Ice (almond) |
|
- | |||||
| 25 | 2147479 | Guide, Ice (white) |
|
- | |||||
| 26 | 488892 | Screw |
|
- | |||||
| 27 | 1125978 | Stop, Glass (almond) |
|
- | |||||
| 27 | 2147480 | Stop, Glass (white) |
|
- | |||||
| 28 | 482672 | Seal |
|
- | |||||
| 29 | 987265 | Socket, Lamp |
|
- | |||||
| 30 | 00488362 | Screw (Replaces: 488362) |
|
$ 144.58 | |||||
| 31 | WP2162361 | Switch (Replaces: 2162361) |
|
Immediately | $ 28.71 | ||||
| 32 | 984683 | Insulator, Switch (2) |
|
- | |||||
| 33 | 1129283 | Bracket, Control |
|
- | |||||
| 34 | WP22002263 | Bulb, Light (Replaces: 851389) |
|
Immediately | $ 14.85 | ||||
| 35 | 983986 | Spring, Plunger |
|
- | |||||
| 36 | 1116563 | Plunger |
|
- | |||||
| 37 | 983987 | Pin, Retainer |
|
- | |||||
| 38 | 2177150 | Lever, Water Dispenser (almond) |
|
- | |||||
| 38 | 2177149 | Lever, Water Dispenser (white) |
|
$ 37.42 | |||||
| 39 | 2171495 | Plaque, Front Cover (almond) |
|
- | |||||
| 39 | 2175844 | Plaque, Front Cover (white) |
|
- | |||||
| 40 | 2177169 | Front Cover, Housing (includes Item 39) (white) |
|
- | |||||
| 40 | 2177171 | Front Cover, Housing (includes Item 39) (almond) |
|
- | |||||
| 43 | 488316 | Screw |
|
- | |||||
| 44 | 2149783 | Wiring Assembly, Door |
|
- | |||||
| 45 | WP3400906 | Screw (Replaces: 489000) |
|
$ 9.05 |
