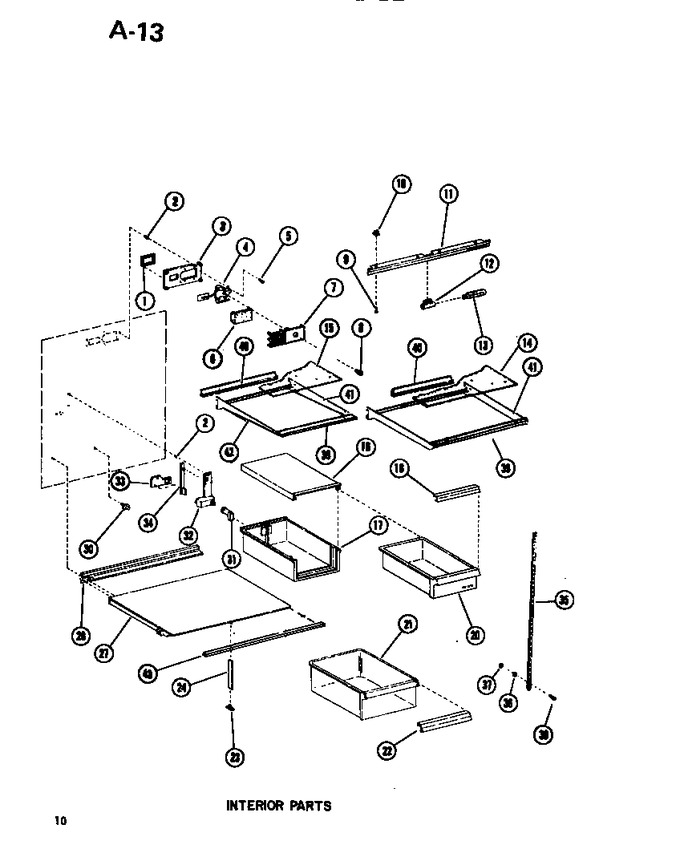

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3104502 | Gasket |
|
- | |||||
| 2 | M0113004 | Clip |
|
- | |||||
| 3 | D7160903 | Back Plate Defect |
|
- | |||||
| 4 | C3684601 | Control |
|
- | |||||
| 5 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 6 | C3617202 | Cap-air Control |
|
- | |||||
| 7 | D75595 | Air Deflector |
|
- | |||||
| 8 | D7009801 | Knob |
|
- | |||||
| 9 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 10 | M5800-7 | Grommet, Screw |
|
- | |||||
| 11 | D7154301 | Light Shield |
|
- | |||||
| 12 | B5637701 | Socket-light |
|
- | |||||
| 13 | WPA3073101 | Bulb 120v. 40w. (Replaces: A3079001) |
|
Immediately | $ 12.72 | ||||
| 14 | D7421203 | Glass Shelf |
|
- | |||||
| 15 | D7421204 | Glass Shelf |
|
- | |||||
| 16 | D7343603 | Top-mt Kpr |
|
- | |||||
| 17 | D7001305 | Sleeve M.k. |
|
- | |||||
| 18 | C8831704 | Trim-handle A |
|
- | |||||
| 20 | D7425301 | Pan, Meat Keeper |
|
- | |||||
| 21 | D7425603 | Pan, Crisper |
|
- | |||||
| 22 | C8831701 | Trim Crisper A |
|
- | |||||
| 23 | B5712-1 | Support, Crisper Post |
|
- | |||||
| 24 | B5710-5 | Support Post, Crisper |
|
- | |||||
| 27 | D7497501 | Top, Crisper |
|
- | |||||
| 28 | C8831806 | Trim, Crisper |
|
- | |||||
| 30 | B5705-1 | Support, Crisper Top |
|
- | |||||
| 31 | C36149 | Grommet, Meat Keeper Sleeve |
|
- | |||||
| 32 | B5656708 | Meatkeeper Assy |
|
- | |||||
| 33 | A3258401 | Gasket Slide K |
|
- | |||||
| 34 | B5622804 | Slide-control |
|
- | |||||
| 35 | C8851901 | Ladder |
|
- | |||||
| 35 | C8851601 | Ladder |
|
- | |||||
| 36 | M0270508 | Washer |
|
- | |||||
| 37 | WP486255 | Nut Keps K (Replaces: M0281003) |
|
$ 6.47 | |||||
| 38 | M0258801 | Stud |
|
- | |||||
| 39 | C8835402 | Trim A |
|
- | |||||
| 39 | C8835401 | Trim A |
|
- | |||||
| 40 | D7415102 | Trim-shelf |
|
- | |||||
| 40 | D7415101 | Trim-shelf A |
|
- | |||||
| 41 | D7420703 | Frame K |
|
- | |||||
| 42 | D7420903 | Frame, M.k. Cantilever |
|
- | |||||
| 42 | D7420704 | Frame A |
|
- | |||||
| 43 | B5709-4 | Trim, Crisper Top |
|
- | |||||
| NI | D7421404 | Glass Shelf Assy |
|
- | |||||
| NI | D7421406 | Glass Shelf Assy |
|
- | |||||
| NI | D7421407 | Glass Shelf Assy |
|
- |
