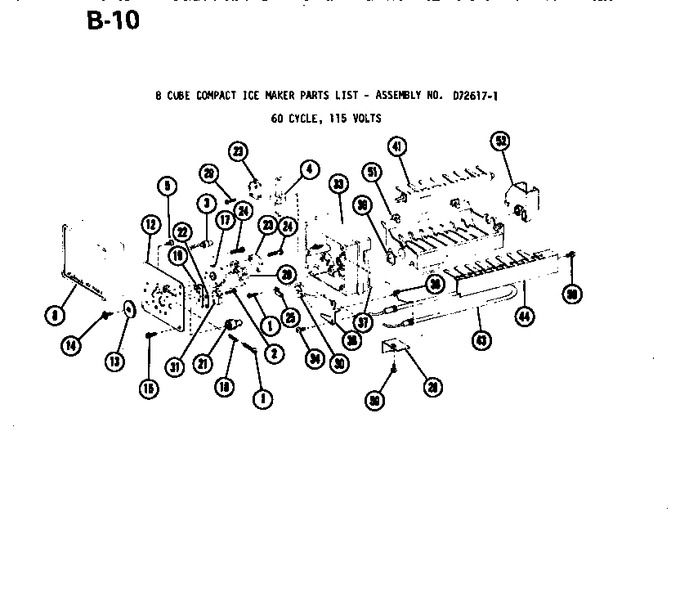

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0227534		Screw		Appelez-nous	-
2	M0203007		Screw		Appelez-nous	-
3	A4617502		Wire Nut K		Appelez-nous	-
4	R1641-90		Wire Assembly		Appelez-nous	-
5	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
8	R1941-45		Cover		Appelez-nous	-
12	R1941-36		Plate, Mounting		Appelez-nous	-
13	Y00000000		See Note Gear		Appelez-nous	-
14	WP489464		Screw A   (Replaces: M0236717)			Immediately	$ 8.38
15	R1860-21		Screw		Appelez-nous	-
17	R1540-6		Motor		Appelez-nous	-
18	Y00000000		See Note Spring		Appelez-nous	-
19	R1941-37		Plate, Valve Switch		Appelez-nous	-
20	R1910-74		Spacer, Holding Switch		Appelez-nous	-
21	Y00000000		See Note Cam		Appelez-nous	-
22	R1960-39		Insulator		Appelez-nous	-
23	Y00000000		See Note Switch, S.p.d.t. -- (2)		Appelez-nous	-
24	M0234008		Screw		Appelez-nous	-
25	R1910-73		Clamp		Appelez-nous	-
28	Y00000000		See Note Bracket		Appelez-nous	-
29	R1860-19		Screw		Appelez-nous	-
30	R1610-27		Thermostat		Appelez-nous	-
31	Y00000000		See Note Switch, S.p.s.t.		Appelez-nous	-
33	Y00000000		See Note Support		Appelez-nous	-
34	R1860-20		Screw, Shoulder		Appelez-nous	-
36	R1950-19		Alumilastic		Appelez-nous	-
37	Y00000000		See Note Arm, Shut-off		Appelez-nous	-
38	Y00000000		See Note Arm, Lever		Appelez-nous	-
39	Y00000000		See Note Spring, Shut-off Arm		Appelez-nous	-
41	Y00000000		See Note Ejector		Appelez-nous	-
43	R1573-35		Heater, Mold		Appelez-nous	-
44	Y00000000		See Note Stripper, Ice		Appelez-nous	-
50	M0253916		Screw		Appelez-nous	-
51	R1610-24		Mold And Heater Assembly		Appelez-nous	-
52	YR1573-37		Bearing And Inlet		Appelez-nous	-
