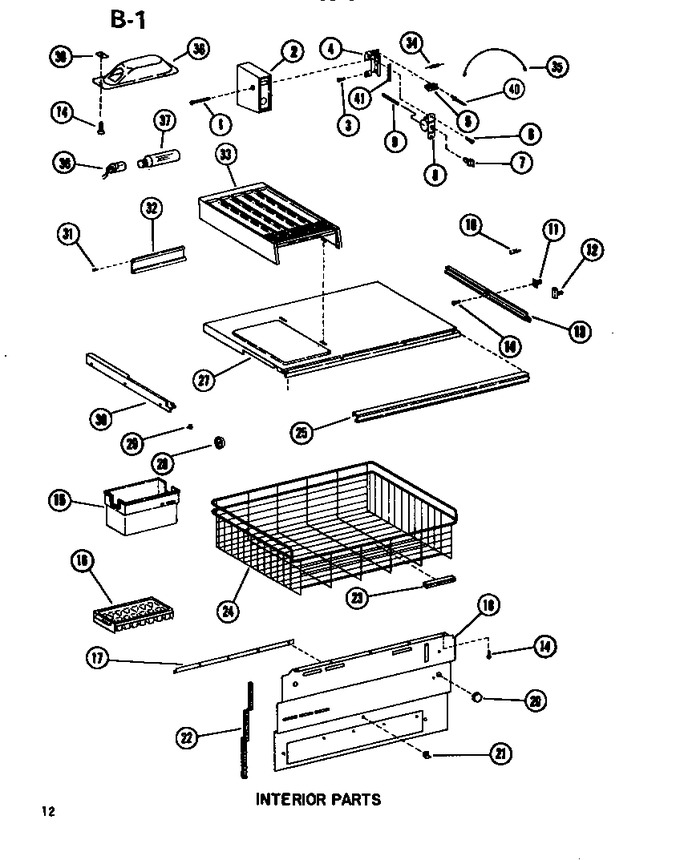

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0230926 | Screw |
|
- | |||||
| 2 | D7278007 | Escutcheon |
|
- | |||||
| 3 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 4 | C8850501 | Bracket |
|
- | |||||
| 5 | M3412-1 | Switch, Power Saver |
|
- | |||||
| 6 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 7 | D7009801 | Knob |
|
- | |||||
| 8 | C3615017 | Control C H |
|
- | |||||
| 9 | B5636608 | Cover-cap Tube |
|
- | |||||
| 10 | B5667301 | Clip,wire |
|
- | |||||
| 11 | M5800-7 | Grommet, Screw |
|
- | |||||
| 12 | 85689501 | Support, Front, Fz Shelf |
|
- | |||||
| 13 | D3917304 | Frame-glide Out |
|
- | |||||
| 14 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 15 | D7442301 | Ice Container |
|
- | |||||
| 16 | WP841180A | Tray, Ice (Replaces: C8717801) |
|
Immediately | $ 47.84 | ||||
| 17 | B5690901 | Heat Conductor |
|
- | |||||
| 18 | D7153401 | Evaporator Cover |
|
- | |||||
| 20 | A3069103 | Plug |
|
- | |||||
| 21 | A3205701 | Shelf Support |
|
- | |||||
| 22 | A3189304 | Gasket, Foam |
|
- | |||||
| 23 | B5718-6 | Handle, Basket |
|
- | |||||
| 24 | D7157102 | Basket-freezer |
|
- | |||||
| 25 | C8832501 | Trim-fr Shelf |
|
- | |||||
| 27 | C8841902 | Shelf Frz Pnt |
|
- | |||||
| 27 | C8841901 | Shelf Frz. |
|
- | |||||
| 28 | B5636301 | Cap |
|
- | |||||
| 29 | M3107-1 | Plug Button, Top Hinge, White |
|
- | |||||
| 30 | D3917303 | Frame-glide Out |
|
- | |||||
| 31 | A3214701 | Hinge Pin |
|
- | |||||
| 32 | C8847604 | Door Ice Tunnel K |
|
- | |||||
| 33 | D7552901 | Tunnel Ice Tray K |
|
- | |||||
| 34 | M3053-1 | Diode |
|
- | |||||
| 35 | A3221101 | Wire-jumper |
|
- | |||||
| 36 | C8730101 | Shield, Light |
|
- | |||||
| 37 | 40A15 | Lamp, 40 Watt, 115 V. (Replaces: A2828-3) |
|
Immediately | $ 1.98 | ||||
| 38 | C8708801 | Socket-light |
|
- | |||||
| 39 | M0288010 | Speed Nut |
|
- | |||||
| 40 | M0102-2 | Rivet, Pop |
|
- | |||||
| 41 | A3030335 | Gasket-per Ft |
|
- |
