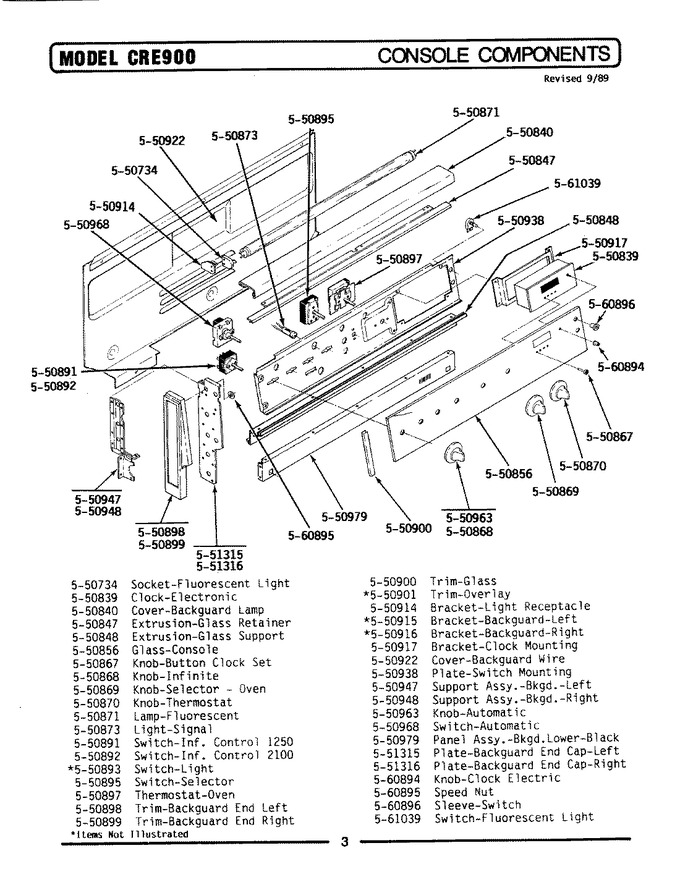

SELECT A DIAGRAM

01 - Control Panel


02 - Door & Drawer Assembly


03 - Oven Assembly


04 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	550734		Light Socket		Appelez-nous	-
2	550839		Clock, Electronic		Appelez-nous	-
3	550840		Cover, Backguard Lamp		Appelez-nous	-
4	550847		Extrusion, Glass Ret.		Appelez-nous	-
5	550848		Extrusion, Glass Supt.		Appelez-nous	-
6	550856		Glass, Console		Appelez-nous	-
7	550867		Knob, Button Clock Set		Appelez-nous	-
8	W10856104		Knob, Infinite   (Replaces: 550868)				$ 27.90
9	550869		Knob, Selector		Appelez-nous	-
10	WP7711P354-60		Knob, Thermostat   (Replaces: 550870)				$ 18.70
11	WP95292		Lamp. Fluorescent   (Replaces: 550871)			Immediately	$ 121.45
12	550873		Light, Signal		Appelez-nous	-
13	W11122008		Switch, Inf. Cont 1250   (Replaces: Y550891)				$ 150.44
14	W11122008		Switch, Inf. Cont 2100   (Replaces: 550892)				$ 150.44
16	550895		Switch-selector		Appelez-nous	-
17	550897		Thermostat, Oven		Appelez-nous	-
18	550898		Trim, Backguard End Left		Appelez-nous	-
19	550899		Trim, Backguard End Right		Appelez-nous	-
20	550900		Trim, Glass		Appelez-nous	-
22	550914		Bracket, Lampguard		Appelez-nous	-
25	550917		Bracket, Clock Mounting		Appelez-nous	-
26	550922		Cover, Backguard Wire		Appelez-nous	-
27	550938		Plate, Switch Mounting		Appelez-nous	-
28	550947		Support Assy, Bkgd Lf		Appelez-nous	-
29	550948		Support Assy, Bkgd Rt		Appelez-nous	-
30	550963		Knob, Switch Auto		Appelez-nous	-
31	550968		Switch, Automatic		Appelez-nous	-
32	550979		Panel Assy, Bkgd Lwr		Appelez-nous	-
33	551315		Plate, Bkgd End Cap Left		Appelez-nous	-
34	551316		Plate, Bkgd End Cap Right		Appelez-nous	-
35	560894		Knob, Clock Electric		Appelez-nous	-
36	Y560895		Speed Nut		Appelez-nous	-
37	560896		Sleeve, Switch		Appelez-nous	-
38	561039		Switch, Push		Appelez-nous	-
NI	550901		Trim, Ovenlay		Appelez-nous	-
NI	550893		Switch, Light		Appelez-nous	-
NI	550915		Bracket, Backguard-left		Appelez-nous	-
NI	550916		Bracket, Backguard-right		Appelez-nous	-
