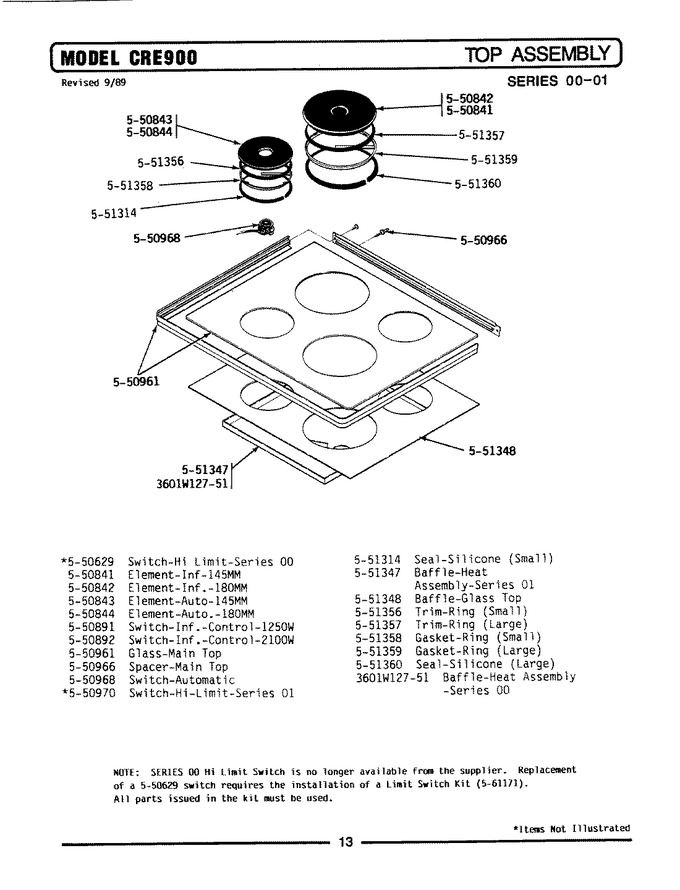

04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP3147131 | Element, Inf. 145mm (Replaces: 550841) |
|
$ 257.00 | |||||
| 3 | 550842 | Element, Inf. 180mm |
|
- | |||||
| 4 | 550843 | Element, Auto. 145mm |
|
- | |||||
| 5 | 550844 | Element, Auto. 180mm |
|
- | |||||
| 8 | 550961 | Glass - Main Top |
|
- | |||||
| 9 | 550966 | Spacer, Main Top |
|
- | |||||
| 10 | 550968 | Switch, Automatic |
|
- | |||||
| 12 | 551314 | Gasket, Element |
|
- | |||||
| 13 | 551347 | Baffle, Heat Assy | 01 |
|
- | ||||
| 14 | 551348 | Baffle, Glass Top |
|
- | |||||
| 15 | 551356 | Trim, Ring Small |
|
- | |||||
| 16 | 551357 | Trim, Ring Large |
|
- | |||||
| 17 | 551358 | Gasket, 145mm |
|
- | |||||
| 18 | 551359 | Gasket - Ring - Large |
|
- | |||||
| 19 | 551360 | Seal - Silicone - Large |
|
- | |||||
| 20 | 3601W127-51 | Baffle, Heat Asy | 00 |
|
- | ||||
| NI | 550970 | Switch, Hi-limit Glass | 01 |
|
- | ||||
| NI | W11122008 | Switch, Inf. Cont 1250 (Replaces: Y550891) |
|
$ 150.44 | |||||
| NI | W11122008 | Switch, Inf. Cont 2100 (Replaces: 550892) |
|
$ 150.44 | |||||
| NI | 550629 | Hi-limit Thermostat | 00 |
|
- |
