Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 60128 Ait Shutter, Oven Burner Appelez-nous -
2 50351 Burner, Oven Special Order $ 2.51

3 60614 Cover, Wires Appelez-nous -
4 60615 Cover, Safety Valve Appelez-nous -
5 60496 Hood, Orfice - Safety Valve Appelez-nous -
6 50346 Igniter, Oven Burner Appelez-nous -
7 64084 Module, Spark Special Order $ 81.62

8 60042 Screw, Air Shutter To Burner Special Order $ 176.42

9 600035 Screw , Cover To Open Appelez-nous -
10 600608 Screw, Igniter To Burner Appelez-nous -
11 60037 Screw, Safety Valve To Oven Special Order $ 17.24

12 50348 Valve, Safety Special Order $ 1.91

N/S 1555-251 Nut, Loxit 3/8 Appelez-nous -
N/S 60747 Tubing, Shut-off To Safety Valve Appelez-nous -
N/S 61128 Nut And Ferrule, 3/8 Appelez-nous -

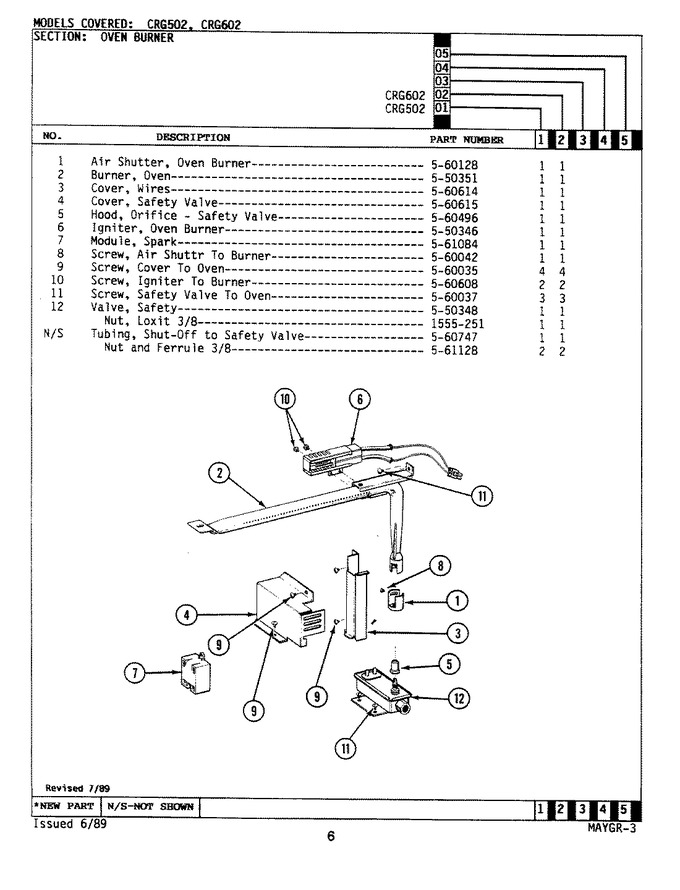

    View Diagram in Separate Window     Print Icon   Print Part List
