SELECT A DIAGRAM

02 - Cabinet


03 - Air Flow And Control , Literature A


04 - Refrigerator Door


05 - Freezer Door


06 - Unit


07 - Shelf

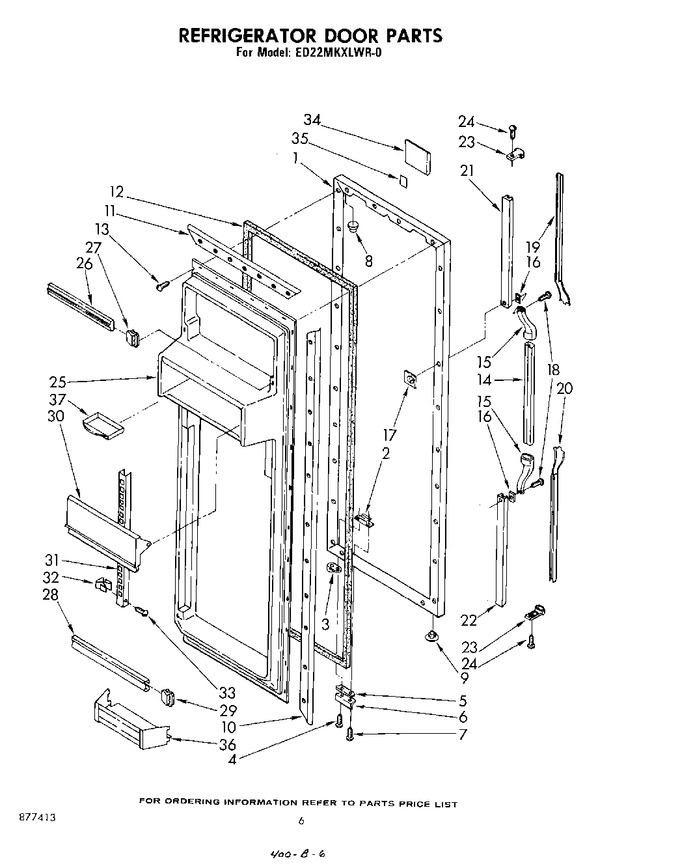

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	941246		Refrigerator, Door Panel (white)		Appelez-nous	-
1	941247		Refrigerator, Door Panel (coffee)		Appelez-nous	-
1	941248		Refrigerator, Door Panel (golden Harvest)		Appelez-nous	-
1	941249		Refrigerator Door Panel (new Avocado)		Appelez-nous	-
1	941250		Refrigerator, Door Panel (almond)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 29.74
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
5	988420		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	509929		Cap, Hinge Sleeve		Appelez-nous	-
9	534927		Hole Plug (white)		Appelez-nous	-
9	989878		Hole, Plug (coffee)		Appelez-nous	-
9	989879		Hole Plug (golden Harvest)		Appelez-nous	-
9	989880		Hole Plug (new Avocado)		Appelez-nous	-
9	989197		Hole Plug (almond)		Appelez-nous	-
10	836120		Retainer Side, Gasket		Appelez-nous	-
11	836121		Retainer Top & Bottom Gasket		Appelez-nous	-
12	2188404A		Door, Gasket Magnetic   (Replaces: 943220)				$ 269.26
13	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 8.40
14	935092		Handle, Center (new Avocado)		Appelez-nous	-
14	944377		Handle, Center (almond)		Appelez-nous	-
14	935093		Handle, Center (golden Harvest)		Appelez-nous	-
14	944376		Handle, Center (white & Coffee)		Appelez-nous	-
15	935103		Center End Cap (2)		Appelez-nous	-
16	935075		Shim, Handle Center (2)		Appelez-nous	-
17	941242		Screw Anchor		Appelez-nous	-
18	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
19	941261		Insert Handle (top)		Appelez-nous	-
20	941263		Insert, Handle Bottom		Appelez-nous	-
21	941260		Retainer Insert (top)		Appelez-nous	-
22	941262		Retainer Insert (bottom)		Appelez-nous	-
23	941259		End Cap		Appelez-nous	-
24	489075		Screw, 10-32 X 5/8		Appelez-nous	-
25	944372		Interior Door, Panel		Appelez-nous	-
26	988746		Trim, Interior Door (top)		Appelez-nous	-
27	943125		Retainer, Door Trim		Appelez-nous	-
28	988747		Trim, Interior Door (bottom)		Appelez-nous	-
29	943138		Retainer Door Trim		Appelez-nous	-
30	935352		Compartment, Door Utility		Appelez-nous	-
31	983804		Shelf Ladder, Door		Appelez-nous	-
32	537095		Expansion Clip		Appelez-nous	-
33	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
34	945108		Nameplate		Appelez-nous	-
35	991259		Tape Strip		Appelez-nous	-
36	944373		Door Shelf, Cantilever		Appelez-nous	-
37	520747		Tray, Butter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
