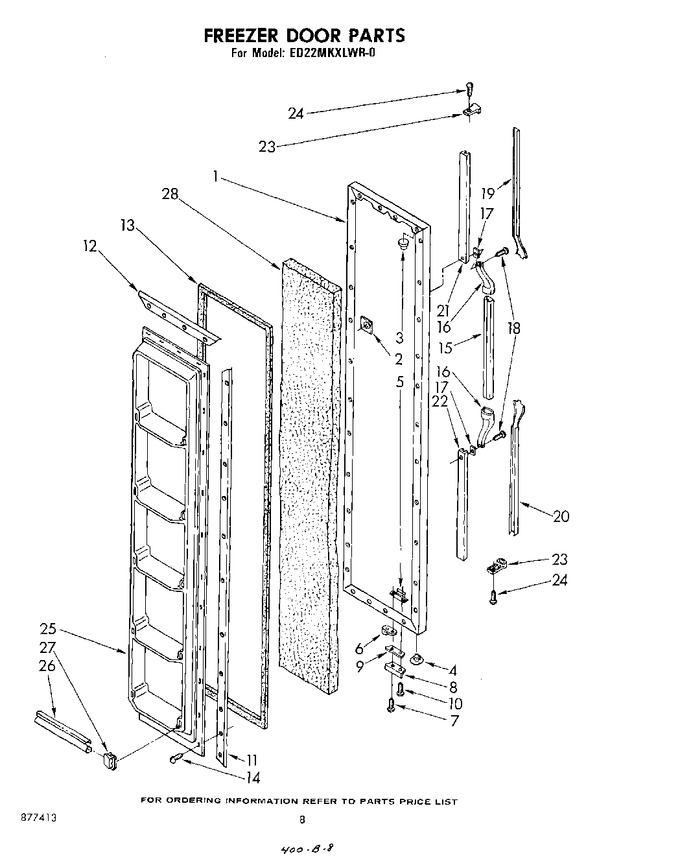

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 941257 | Freezer Door Panel (new Avocado) |
|
- | |||||
| 1 | 941258 | Freezer, Door Panel (almond) |
|
- | |||||
| 1 | 941254 | Freezer, Door Panel (white) |
|
- | |||||
| 1 | 941255 | Freezer, Door Panel (coffee) |
|
- | |||||
| 1 | 941256 | Freezer, Door Panel (golden Harvest) |
|
- | |||||
| 2 | 941242 | Screw Anchor |
|
- | |||||
| 3 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 4 | 534927 | Hole Plug (white) |
|
- | |||||
| 4 | 989878 | Hole, Plug (coffee) |
|
- | |||||
| 4 | 989879 | Hole Plug (golden Harvest) |
|
- | |||||
| 4 | 989880 | Hole Plug (new Avocado) |
|
- | |||||
| 4 | 989197 | Hole Plug (almond) |
|
- | |||||
| 5 | 988402 | Tap Plate |
|
- | |||||
| 6 | 4318165 | Door Closer, Cam (Replaces: 986758) |
|
Immediately | $ 29.74 | ||||
| 7 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 8.40 | ||||
| 8 | 988420 | Bracket, Door Stop |
|
- | |||||
| 9 | 988421 | Shim |
|
- | |||||
| 10 | 488549 | Screw, 8 X 5/8 |
|
- | |||||
| 10 | 488930 | Screw (repair) |
|
- | |||||
| 11 | 836120 | Retainer Side, Gasket |
|
- | |||||
| 12 | 836122 | Retainer, Top & Bottom Gasket |
|
- | |||||
| 13 | 2188405A | Door Gasket, Magnetic (Replaces: 943221) |
|
$ 368.63 | |||||
| 14 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 14 | WP489069 | Screw, 7 X 1/2 (Replaces: 489089) |
|
Immediately | $ 8.40 | ||||
| 15 | 935092 | Handle, Center (new Avocado) |
|
- | |||||
| 15 | 944377 | Handle, Center (almond) |
|
- | |||||
| 15 | 935093 | Handle, Center (golden Harvest) |
|
- | |||||
| 15 | 944376 | Handle, Center (white & Coffee) |
|
- | |||||
| 16 | 935103 | Center End Cap (2) |
|
- | |||||
| 17 | 935075 | Shim, Handle Center |
|
- | |||||
| 18 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 19 | 941261 | Insert, Handle |
|
- | |||||
| 20 | 941263 | Insert, Handle |
|
- | |||||
| 21 | 941260 | Retainer Insert |
|
- | |||||
| 22 | 941262 | Retainer Insert |
|
- | |||||
| 23 | 941259 | End Cap |
|
- | |||||
| 24 | 489075 | Screw, 10-32 X 5/8 |
|
- | |||||
| 25 | 944379 | Interior Door Panel |
|
- | |||||
| 26 | 991496 | Trim, Door Shelf |
|
- | |||||
| 27 | 943125 | Retainer, Door Trim |
|
- | |||||
| 28 | 876029 | Kit, Foam Slab (required When Replacing Exterior Door Panel) |
|
- |
