SELECT A DIAGRAM

02 - Cabinet


03 - Air Flow And Control , Literature A


04 - Refrigerator Door


05 - Freezer Door

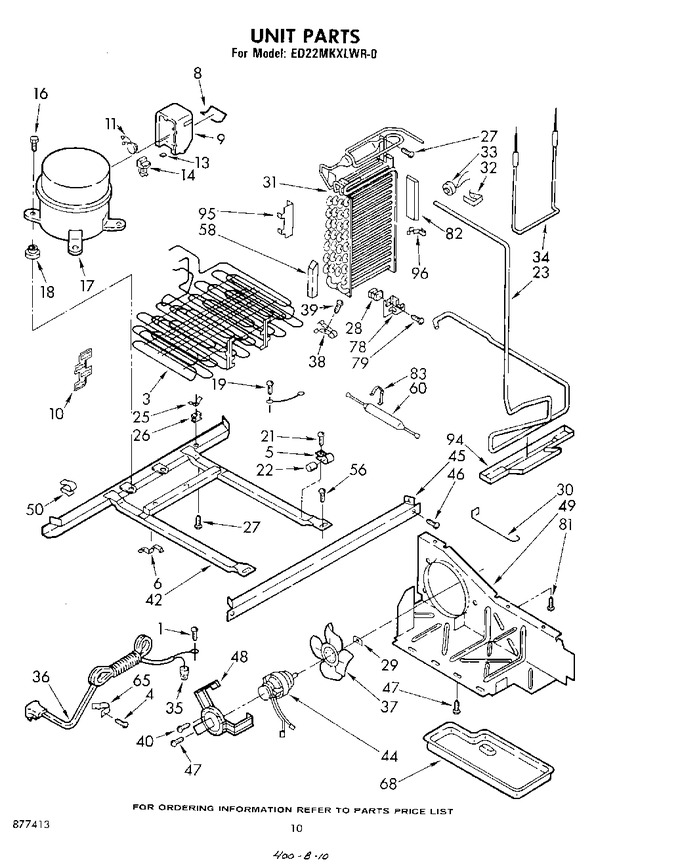

06 - Unit


07 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	488474		Screw, Ground		Appelez-nous	-
3	851123		Condenser & Precooler		Appelez-nous	-
4	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
8	531318		Spring, Case		Appelez-nous	-
9	549945		Case, Relay		Appelez-nous	-
10	987210		Spacer Condenser (4)		Appelez-nous	-
11	941583		Overload		Appelez-nous	-
13	547272		Bumper		Appelez-nous	-
14	938263		Relay		Appelez-nous	-
16	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
17	464103		Compressor		Appelez-nous	-
18	547283		Grommet (4)		Appelez-nous	-
19	303776		Screw   (Replaces: 488879)		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
22	510769		Dampener (2)		Appelez-nous	-
23	941683		Exchanger, Heat		Appelez-nous	-
25	548738		Clamp (4)		Appelez-nous	-
26	548737		Grommet (4)		Appelez-nous	-
27	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
28	944454		Grommet		Appelez-nous	-
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
30	850156		Guard, Fan		Appelez-nous	-
31	850383		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387489		Defrost, Bimetal   (Replaces: 934424)				$ 108.99
33	WP4387489		Bimetal, Defrost (alternate)   (Replaces: 934425)				$ 108.99
34	WP549433		Heater, Defrost   (Replaces: 934445)				$ 175.73
35	227991		Nut, Wire		Appelez-nous	-
36	850626		Cord, Service		Appelez-nous	-
37	989524		Blade, Fan		Appelez-nous	-
38	510414		Tube Clip		Appelez-nous	-
39	WP488787		Screw, 8 X 1/2   (Replaces: 487981)				$ 11.26
40	488868		Screw, 8-36 X 3/8 (3)		Appelez-nous	-
42	936079		Frame		Appelez-nous	-
44	R1211		Motor, Fan   (Replaces: 851618)				$ 145.61
44	833697		Motor, Fan (alternate)   (Replaces: 851619)			Immediately	$ 109.14
45	548662		Rail, Front		Appelez-nous	-
46	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket, Fan Motor		Appelez-nous	-
49	850391		Baffle, Air		Appelez-nous	-
50	548745		Clip, Wire (2)		Appelez-nous	-
56	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
58	652985		Baffle, Air Evaporator (2)		Appelez-nous	-
60	W10843121		Drier   (Replaces: 978246)			Immediately	$ 57.13
65	549193		Clamp				$ 14.06
68	849331		Tray, Evaporator		Appelez-nous	-
78	842436		Support, Evaporator		Appelez-nous	-
79	WP681414		Screw, 10-12 X 3/8   (Replaces: 489049)			Immediately	$ 8.47
81	488978		Screw, 8-15 X 3/8		Appelez-nous	-
82	849335		Baffle, Air		Appelez-nous	-
83	548508		Clamp, Drier		Appelez-nous	-
94	989269		Pan, Drip		Appelez-nous	-
95	850568		Heat Shield		Appelez-nous	-
96	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
96	549419		Clamp, Heater (4)		Appelez-nous	-
96	978026		Valve, Access (5/16``)			Immediately	$ 134.49
96	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
96	978028		Valve, Access (1/2)		Appelez-nous	-
96	978029		Valve Access (5/8``)				$ 93.85
96	978030		Valve, Access (3/4``)				$ 137.25
