SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls & Light Covers


03 - Door Assy


04 - Door Handles & Accessories


05 - Evaporator & Freezer Control Assy


06 - Ice Maker Assy & Parts


07 - Insulation & Rollers


08 - Light Switches & Drain Funnel


09 - Machine Compartment


10 - Shelving Assy

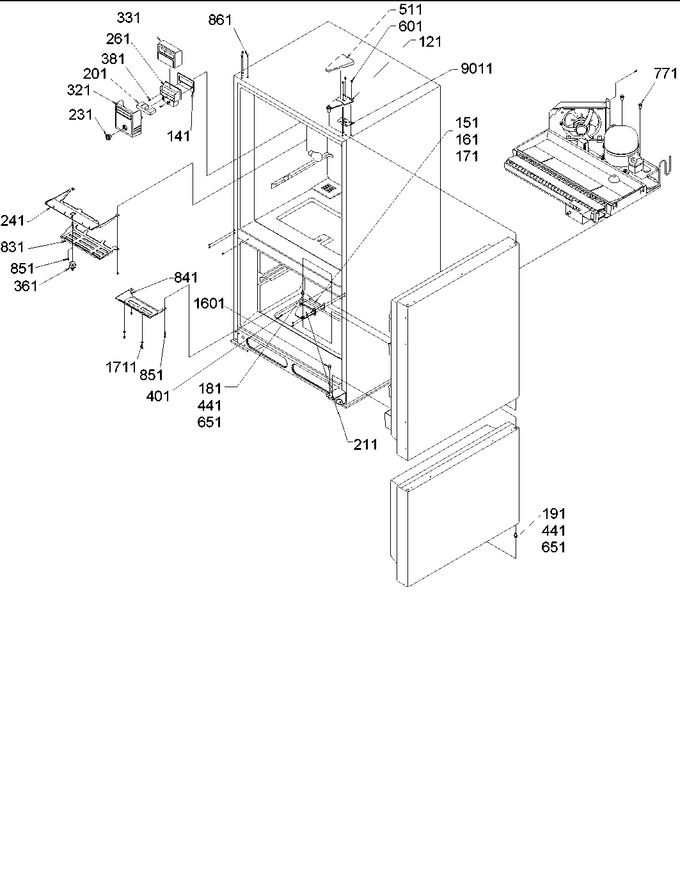

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
121	12077318		Hinge, Top-e Ct		Appelez-nous	-
141	B8345401		Gasket, Damper		Appelez-nous	-
151	10562201		Shim, Center Hinge		Appelez-nous	-
161	10562202		Shim, Center Hinge		Appelez-nous	-
171	10562203		Shim, Center Hinge		Appelez-nous	-
181	WP67006744		Pin, Hinge (ctr)   (Replaces: 10351001)				$ 8.68
191	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
201	C8902601		Insert, Control		Appelez-nous	-
211	12446508		Hinge, Ctr (bk-e Ct)		Appelez-nous	-
231	D7795826		Knob, Control (wht)		Appelez-nous	-
241	12056201		Shield, Ref Light Sw		Appelez-nous	-
261	R0161050		Damper Control Kit				$ 120.41
321	D7687530		Cover, Refr Control		Appelez-nous	-
331	D7687701		Insul. Damper		Appelez-nous	-
361	W11384469		Switch, Light   (Replaces: C3680310)			Immediately	$ 39.09
381	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
401	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.72
441	WPM0274062		Shim, Non Metal (blk)   (Replaces: M0274062)			Immediately	$ 24.43
511	10444804		Cover, Hinge (black)		Appelez-nous	-
601	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
651	M0274063		Shim, Non Metal (blk)		Appelez-nous	-
771	M0221523		Screw, Shldr		Appelez-nous	-
831	12056301		Cover, Ref Light		Appelez-nous	-
841	10493302		Cover, Frz Light		Appelez-nous	-
851	M0238846		Screw-sm		Appelez-nous	-
861	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)			Immediately	$ 8.15
1711	M0270538		Washer		Appelez-nous	-
9011	12545201		Shim, Posi Pin		Appelez-nous	-
