SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls & Light Covers


03 - Door Assy


04 - Door Handles & Accessories


05 - Evaporator & Freezer Control Assy


06 - Ice Maker Assy & Parts


07 - Insulation & Rollers


08 - Light Switches & Drain Funnel


09 - Machine Compartment


10 - Shelving Assy

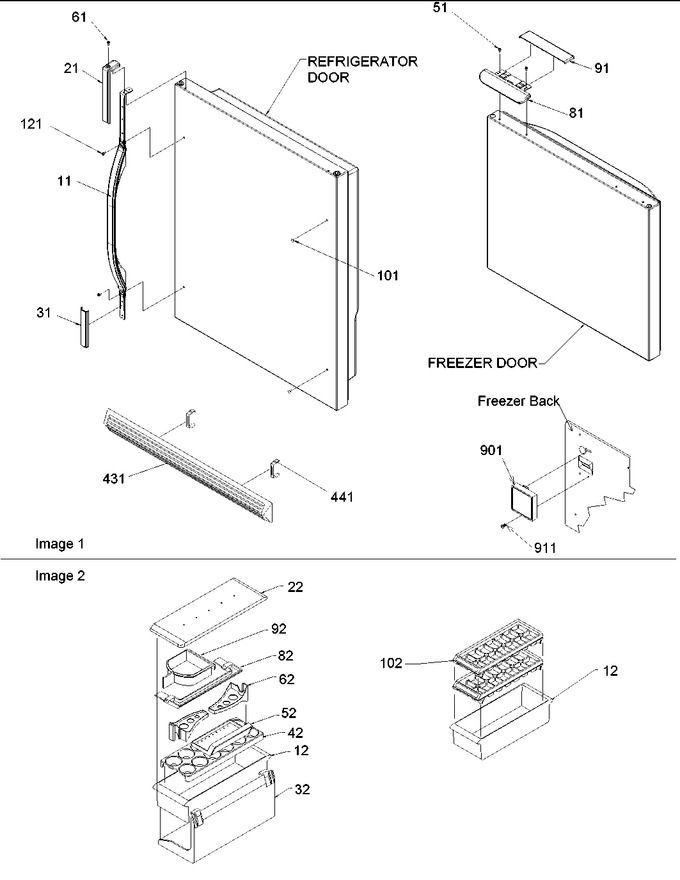

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12443505B		Handle,ref Dr(black)		Appelez-nous	-
12	10423129		Bin-utility		Appelez-nous	-
21	12443303		Trim, Upper Handle (black)		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
31	12273515		Trim, Bot Mt (black)		Appelez-nous	-
32	10992303		Rack, Utility		Appelez-nous	-
42	10436506		Tray, Egg				$ 8.28
51	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
52	10310901		Tray, Butter		Appelez-nous	-
61	12248201		Screw, Hndl Cone				$ 5.48
62	12103905		Snugger, Door Shelf		Appelez-nous	-
81	67005125		Handle, Fz Dr (blk)   (Replaces: 12285406)				$ 149.13
82	10468004		Retainer, Tall Pkg		Appelez-nous	-
91	12285503		Cap,frz Dr Handle(black)		Appelez-nous	-
92	10441102		Hugger, Bottle (shelf Divider)		Appelez-nous	-
101	WP12246608		Plug, Handle Hole (blk)   (Replaces: 12246603)			Immediately	$ 8.15
102	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 47.84
121	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
441	10551502		Clip, Toe Grille				$ 5.84
901	D7874403		Cover-fl Tb/plug		Appelez-nous	-
911	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30

    View Diagram in Separate Window       Print Part List
