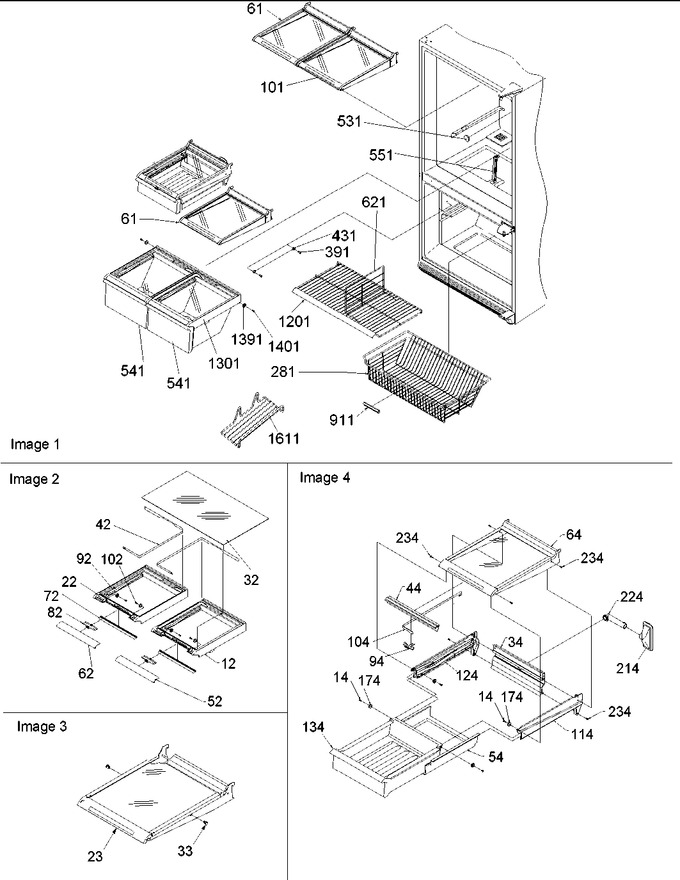

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10485901 | Frame, Crisper (r) |
|
- | |||||
| 14 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 22 | 10485902 | Frame, Crisper (l) |
|
- | |||||
| 23 | 10895811 | Assy, Shelf Hlf Gls |
|
- | |||||
| 32 | 10370035 | Glass, Shelf |
|
$ 101.12 | |||||
| 33 | 10875101 | Stop, Shelf |
|
- | |||||
| 34 | 10934903 | Extrusion Mk Rear |
|
- | |||||
| 42 | 10514002 | Band, Crisper Control |
|
- | |||||
| 44 | 10920303 | Extrusion, Mk Frt |
|
- | |||||
| 52 | 10530318 | Trim-crsp Front |
|
- | |||||
| 54 | 10437305 | Sleeve, Mk |
|
- | |||||
| 61 | 10926204Q | Assy, Shelf Hlf Gls |
|
- | |||||
| 62 | 10530319 | Trim- Crsp Front |
|
- | |||||
| 64 | 10895708 | Shelf-sta |
|
- | |||||
| 72 | 10530204 | Seal, Crisper |
|
$ 39.10 | |||||
| 82 | 10797501 | Slide, Crisper |
|
- | |||||
| 92 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 94 | 10920401 | Slide, Mk Control |
|
- | |||||
| 101 | 10895709 | Shelf, Stationary |
|
- | |||||
| 102 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 104 | 10935002 | Band, Mk Control |
|
- | |||||
| 114 | 10880202 | Glide, Mk R |
|
$ 21.98 | |||||
| 124 | 10897102 | Glide, L. Mk |
|
$ 68.61 | |||||
| 134 | 10417013 | Pan,meatkeeper |
|
- | |||||
| 174 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 214 | 10501901 | Grommet, Mt. Kpr. |
|
- | |||||
| 224 | 10486401 | Tunnel, Air Mt Kp |
|
- | |||||
| 234 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 281 | 12433501 | Basket, Freezer |
|
- | |||||
| 391 | WP67006908 | Screw (Replaces: M0230919) |
|
Immediately | $ 8.78 | ||||
| 431 | 10972101 | Spacer, Ice Rack |
|
$ 7.82 | |||||
| 531 | M0310343 | Plug, Button (wht) |
|
$ 11.20 | |||||
| 541 | 10432008 | Pan,crisper |
|
- | |||||
| 551 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 621 | D7806002 | Divider, Wire |
|
- | |||||
| 911 | 10508506 | Handle, Basket/shelf |
|
- | |||||
| 1201 | 12204704 | Shelf, Frz Glide |
|
- | |||||
| 1301 | 12431806Q | Assy, Crisper |
|
- | |||||
| 1391 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 1401 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 1611 | 12228201 | Rack, Ice Tray |
|
- |
