SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Air Flow


09 - Control


10 - Icemaker , Not Illustrated

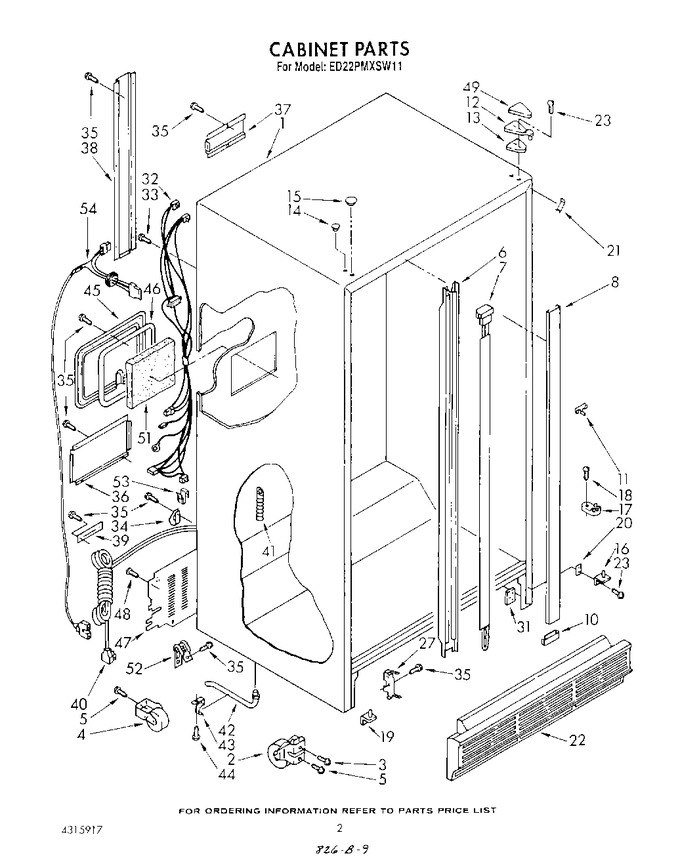

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981128		Front Roller (2)		Appelez-nous	-
3	489333		Screw		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 40.17
5	488454		Screw, (4) 1/4-28 X 1/2		Appelez-nous	-
6	1118354		Mullion Rail		Appelez-nous	-
7	1106997		Heater, Mullion		Appelez-nous	-
8	1123966		Front Mullion Rail (white)		Appelez-nous	-
8	1123969		Front Mullion Rail (almond)		Appelez-nous	-
8	1123968		Front Mullion Rail (golden Harvest)		Appelez-nous	-
8	1123970		Front Mullion Rail (toast)		Appelez-nous	-
8	1123971		Front Mullion Rail (platinum)		Appelez-nous	-
10	1118361		Filler Bottom Mullion (white)		Appelez-nous	-
10	1118365		Filler Bottom Mullion (platinum)		Appelez-nous	-
10	1118364		Filler Bottom Mullion (toast)		Appelez-nous	-
10	1118363		Filler Bottom Mullion (golden Harvest)		Appelez-nous	-
10	1118362		Filler Bottom Mullion (almond)		Appelez-nous	-
11	1110607		Clip, Ground		Appelez-nous	-
12	1123514		Hinge, Top		Appelez-nous	-
13	1123515		Shim, Hinge				$ 6.58
14	989957		Hole, Plug (golden Harvest)		Appelez-nous	-
14	989958		Hole Plug (almond)		Appelez-nous	-
14	849391		Hole, Plug (white)		Appelez-nous	-
14	1101315		Hole, Plug (platinum)		Appelez-nous	-
14	1101314		Hole, Plug (toast)		Appelez-nous	-
15	1115352		Hole Plug (white)		Appelez-nous	-
15	1115354		Hole Plug (almond)		Appelez-nous	-
15	1115353		Hole Plug (golden Harvest)		Appelez-nous	-
15	1115355		Hole Plug (toast)		Appelez-nous	-
15	1115356		Hole Plug (platinum)		Appelez-nous	-
16	1115900		Hinge, Bottom R.h.		Appelez-nous	-
17	WPW10329686		Door Closer Lower Cam (2)   (Replaces: 1115901)			Immediately	$ 5.43
18	489296		Screw		Appelez-nous	-
19	1115903		Hinge, Bottom (l.h.)		Appelez-nous	-
20	1129868		Spacer, Hinge		Appelez-nous	-
21	1110710		Filler, Wrapper (golden Harvest)		Appelez-nous	-
21	1110711		Filler, Wrapper (toast)		Appelez-nous	-
21	1110712		Filler, Wrapper (platinum)		Appelez-nous	-
21	1110709		Filler, Wrapper (almond)		Appelez-nous	-
21	1110708		Filler, Wrapper (white)		Appelez-nous	-
22	1129001		Grille		Appelez-nous	-
23	489297		Screw (repair)		Appelez-nous	-
23	489327		Screw		Appelez-nous	-
27	WP2155013		Clip, Grille Retainer (2)   (Replaces: 1114789)			Immediately	$ 7.72
31	2147310		Tap Plate (2)		Appelez-nous	-
32	1123739		Cabinet Harness		Appelez-nous	-
33	WP250830		Screw, Ground   (Replaces: 489048)				$ 7.95
34	937357		Clamp		Appelez-nous	-
35	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 7.85
35	WP489478		Screw   (Replaces: 489242)				$ 7.75
36	1108442		Cover, Wiring		Appelez-nous	-
37	1108440		Wiring Shield, Short		Appelez-nous	-
38	1108441		Wiring Shield, Long		Appelez-nous	-
39	1105607		Tube Clamp (2)		Appelez-nous	-
40	937360		Cord, Service		Appelez-nous	-
41	842258		Drain Ferrule		Appelez-nous	-
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
44	488978		Screw		Appelez-nous	-
45	1108443		Cover, Plug		Appelez-nous	-
46	1115321		Sealing Gasket		Appelez-nous	-
47	1105617		Cover, Unit		Appelez-nous	-
48	WPW10141645		Screw, 8 X 1/2 (6)   (Replaces: 489084)				$ 7.67
49	1100172		Hinge Cover (toast)		Appelez-nous	-
49	842010		Hinge Cover (white)		Appelez-nous	-
49	989194		Hinge Cover (almond)		Appelez-nous	-
49	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
49	1100173		Hinge Cover (platinum)		Appelez-nous	-
51	1118236		Insulation		Appelez-nous	-
52	549193		Clamp-service Cord				$ 13.39
53	548745		Clip, Wire		Appelez-nous	-
54	WP2187501		Wiring Harness, Icemaker   (Replaces: 1118695)				$ 113.76
