SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Air Flow


09 - Control


10 - Icemaker , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	943320		Overload Spring		Appelez-nous	-
3	1105640		Condenser Assembly		Appelez-nous	-
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
7	WPW10662129		Running Capacitor (use With Production Compressor Only)   (Replaces: 1114291)			Immediately	$ 58.86
8	943322		Strap, Cover		Appelez-nous	-
9	1105055		Cover		Appelez-nous	-
10	1118850		Housing Plug		Appelez-nous	-
11	1118862		Overload		Appelez-nous	-
12	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.06
14	1101014		Relay		Appelez-nous	-
15	509812		Grommet		Appelez-nous	-
16	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.42
17	482982		Compressor (includes Items 51, 52, 53, 54, 55, 57, 59, & 61) (also Order 876765 Tube Kit)		Appelez-nous	-
18	876811		Grommet (4)   (Replaces: 1114359)				$ 7.42
20	851095		Strap		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 21.16
22	510769		Dampener (2)		Appelez-nous	-
23	1106990		Exchanger, Heat		Appelez-nous	-
24	WP489069		Screw (4)   (Replaces: 488480)			Immediately	$ 7.86
27	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 7.85
27	WP489478		Screw   (Replaces: 489242)				$ 7.75
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 7.82
30	1105614		Guard, Fan		Appelez-nous	-
31	1106987		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387499		Bimetal, Defrost   (Replaces: 1127771)				$ 120.86
34	1106969		Heater, Defrost		Appelez-nous	-
35	227991		Wire Connector		Appelez-nous	-
37	989524		Blade, Fan		Appelez-nous	-
38	1114634		Sleeve		Appelez-nous	-
39	1103840		Receptacle, Housing		Appelez-nous	-
40	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.06
42	2304903		Frame   (Replaces: 1105535)				$ 233.03
44	833697		Motor, Fan   (Replaces: 1121292)			Immediately	$ 88.15
45	1105525		Rail, Front		Appelez-nous	-
46	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket, Fan Motor		Appelez-nous	-
49	1105530		Baffle, Air		Appelez-nous	-
51	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
52	483054		Overload		Appelez-nous	-
53	1105015		Cover, Terminal		Appelez-nous	-
54	938384		Terminal Strap		Appelez-nous	-
55	482996		Capacitor		Appelez-nous	-
56	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
57	489142		Nut		Appelez-nous	-
59	489143		Washer		Appelez-nous	-
60	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 52.57
61	1114190		Overload Spring		Appelez-nous	-
68	1105524		Tray, Evaporator		Appelez-nous	-
81	489050		Screw, 8-32 X 1/2				$ 692.56
83	1127590		Clamp, Dryer		Appelez-nous	-
96	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
96	1108431		Clamp (4)		Appelez-nous	-
96	978026		Valve, Access (5/16``)			Immediately	$ 128.09
96	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
96	978028		Valve, Access (1/2)		Appelez-nous	-
96	978029		Valve Access (5/8``)				$ 93.85
96	978030		Valve, Access (3/4``)				$ 130.71
96	876764		Valve, Access(3/16``)			Immediately	$ 91.35

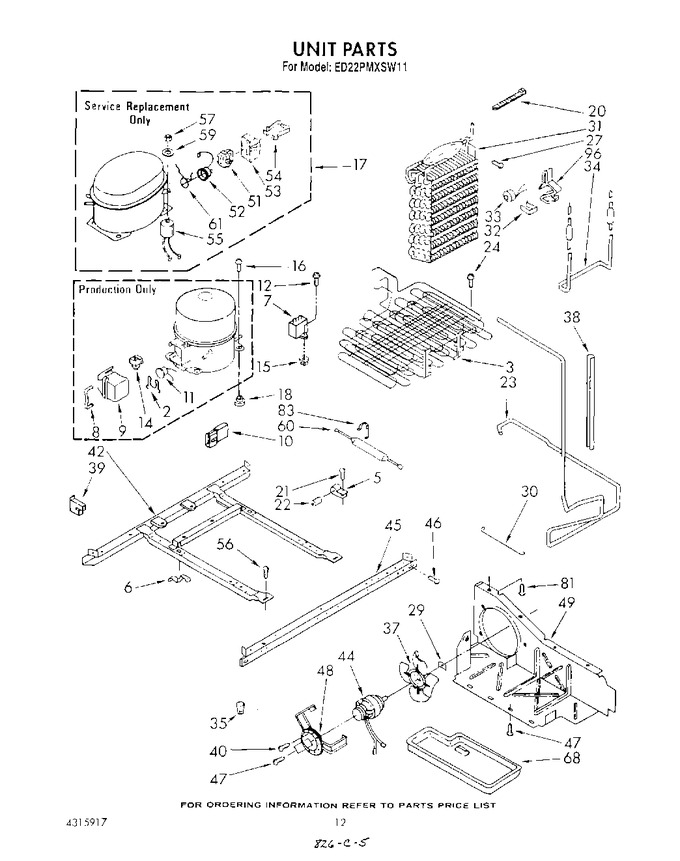

    View Diagram in Separate Window       Print Part List
