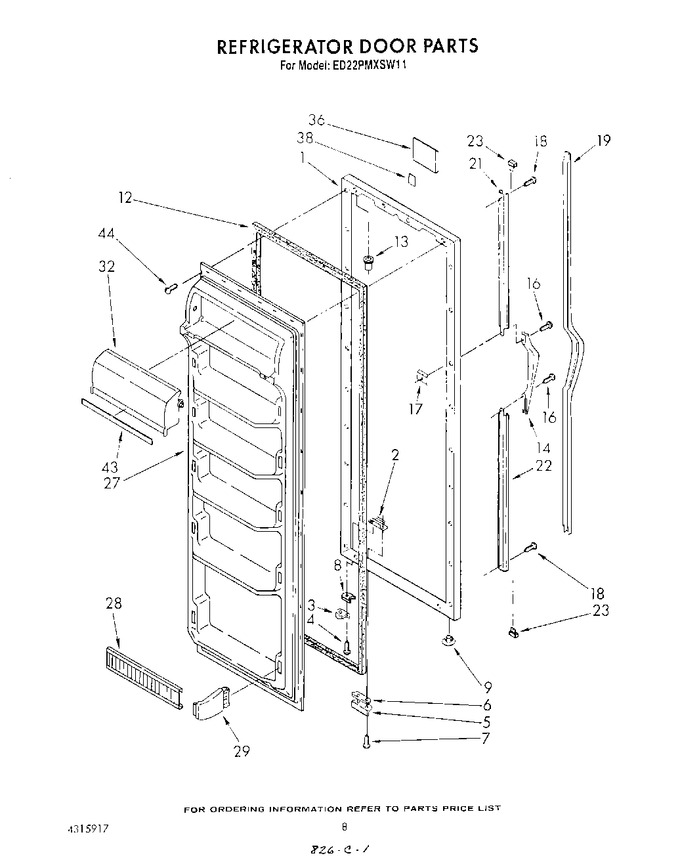

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1108464		Refrigerator Door (golden Harvest)		Appelez-nous	-
1	1108466		Refrigerator Door (toast)		Appelez-nous	-
1	1108467		Refrigerator Door (platinum)		Appelez-nous	-
1	1106923		Refrigerator Door (white)		Appelez-nous	-
1	1108465		Refrigerator Door (almond)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 27.36
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
5	1115906		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
9	534927		Hole Plug		Appelez-nous	-
12	2188404A		Door, Gasket Magnetic   (Replaces: 1110648)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	987009		Handle		Appelez-nous	-
16	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
17	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
18	489075		Screw, 10-32 X 5/8		Appelez-nous	-
19	1108722		Insert, Handle		Appelez-nous	-
19	1111550		Insert, Handle (black) (for Platinum Model Only)		Appelez-nous	-
21	987008		Insert Retainer (top)		Appelez-nous	-
22	987010		Insert Retainer (bottom)		Appelez-nous	-
23	987006		End Cap		Appelez-nous	-
27	1108461		Interior, Door Panel		Appelez-nous	-
28	1110714		Trim, Door Shelf		Appelez-nous	-
29	1110713		Retainer, Door Trim				$ 5.84
32	1110716		Compartment Door		Appelez-nous	-
36	1116206		Nameplate		Appelez-nous	-
38	991259		Tape Strip		Appelez-nous	-
43	1110717		Trim, Door Compartment		Appelez-nous	-
44	WP489069		Screw, (30) 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
