Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362041		Refrigerator Door (almond (also Order Item 18))		Appelez-nous	-
1	4362040		Refrigerator Door (white)		Appelez-nous	-
2	2163337		Shelf Bin (2)		Appelez-nous	-
3	2148702		Door, Compartment		Appelez-nous	-
4	1110717		Trim, Compartment Door		Appelez-nous	-
5	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
6	2163336		Shelf Bin (2)		Appelez-nous	-
7	1119363		Insert, Handle (almond)		Appelez-nous	-
7	1119361		Insert, Handle (white)		Appelez-nous	-
8	2188404A		Door Gasket, Magnetic   (Replaces: 2148270)				$ 269.26
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1118417		Handle, Center		Appelez-nous	-
11	941242		Screw Anchor (2)		Appelez-nous	-
12	1119359		End Cap, Center Handle		Appelez-nous	-
13	935075		Shim		Appelez-nous	-
14	1116986		Pin Plate				$ 12.10
15	2152336		Divider, Bin		Appelez-nous	-
16	1119369		Insert, Handle (almond)		Appelez-nous	-
16	1119367		Insert, Handle (white)		Appelez-nous	-
17	1129278		Panel, Interior Door		Appelez-nous	-
18	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
19	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
20	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 27.36
22	WP999367		Screw   (Replaces: 489367)				$ 7.86
23	2155334		Bracket, Door Stop		Appelez-nous	-
25	1118048		Pin Plate		Appelez-nous	-
26	2155335		Tap, Plate		Appelez-nous	-
27	1119360		Retainer, Insert (bottom)		Appelez-nous	-
28	1119366		Retainer, Insert		Appelez-nous	-
29	2156220		End Cap (2)		Appelez-nous	-
30	489075		Screw		Appelez-nous	-
33	489022		Screw		Appelez-nous	-
34	1117766		Gasket Retainer, Side (2)				$ 36.55
35	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
37	1115379		Reinforcement, Shelf		Appelez-nous	-
38	4210445		Woodgrain Handle Insert		Appelez-nous	-
38	1119055		Reinforcement, Shelf		Appelez-nous	-
38	4318948		Trimless Black Decor Panel		Appelez-nous	-
38	4319080		Black Handle Insert		Appelez-nous	-

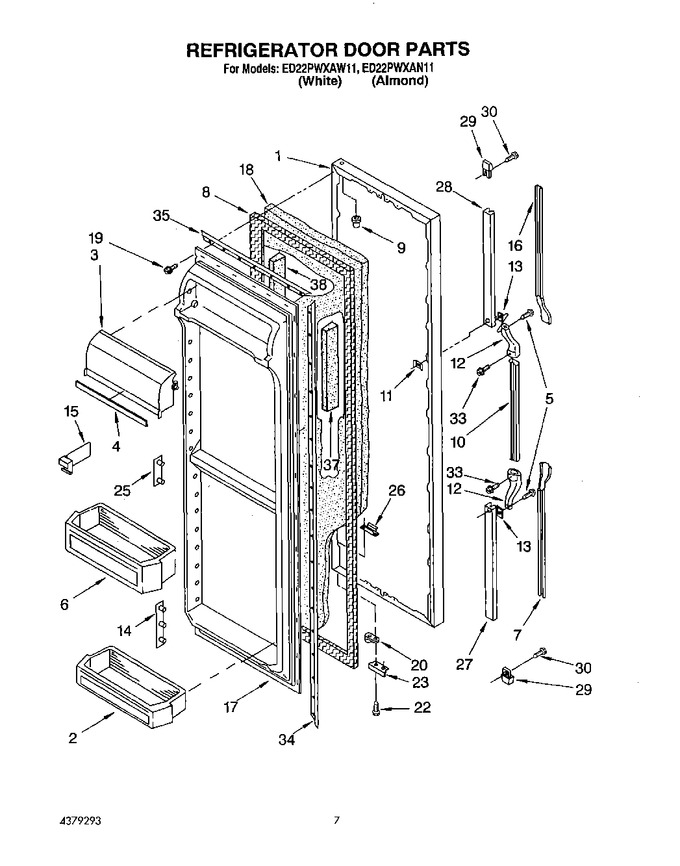

    View Diagram in Separate Window       Print Part List
