New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2154789 Heater, Dispenser Appelez-nous -
2 987048 Grommet Appelez-nous -
4 1107943 Housing, Dispenser Appelez-nous -
5 W11693756 Screw   (Replaces: 488687) In-Stock Immediately $ 14.06

6 N/A Tube, Water (see Item No.22) Appelez-nous -
7 983691 Gasket, Door Special Order $ 6.61

8 987121 Shield, Ice Door Special Order $ 5.91

9 983690 Door, Ice Special Order $ 11.13

10 938669 Door Mechanism Assembly Appelez-nous -
11 227991 Wire Connector Appelez-nous -
12 WP1120581 Mechanism Delay   (Replaces: 1120581) Special Order $ 213.07

13 983900 Grille, Overflow Special Order $ 27.30

14 987917 Clip, Bearing (2) Appelez-nous -
15 983697 Bearing, Lever (3) Appelez-nous -
16 983696 Spring, Lever (2) Special Order $ 21.26

17 984494 Shield, Wiring Appelez-nous -
18 WP489128 Screw   (Replaces: 488500) Special Order $ 10.88

19 851386 Switch, Light Appelez-nous -
22 WP4388152 Water Fitting Assembly (includes Water Tube)   (Replaces: 2155018) Special Order $ 276.43

23 WP965173 Screw   (Replaces: 487916) In-Stock Immediately $ 10.72

24 1127421 Lever, Ice Dispenser Appelez-nous -
25 1118269 Guide, Ice Appelez-nous -
26 489197 Screw Appelez-nous -
27 1119056 Stop, Glass Appelez-nous -
28 482672 Seal Appelez-nous -
29 987265 Socket, Lamp Appelez-nous -
30 00488362 Screw   (Replaces: 488362) Special Order $ 144.58

31 WP2162361 Switch   (Replaces: 2162361) In-Stock Immediately $ 27.34

32 984683 Insulator, Switch (2) Appelez-nous -
33 1129283 Bracket, Control Appelez-nous -
34 WP22002263 Bulb, Light   (Replaces: 851389) In-Stock Immediately $ 13.66

35 983986 Spring, Plunger Appelez-nous -
36 1116563 Plunger Appelez-nous -
37 983987 Pin, Retainer Appelez-nous -
38 2159196 Lever, Water Dispenser Appelez-nous -
39 2150335 Plaque, Front Cover Appelez-nous -
40 2150340 Front Cover, Housing (includes Item 39) Appelez-nous -
41 814037 Switch   (Replaces: 313125) Special Order $ 90.36

42 987049 Bracket, Water Appelez-nous -
43 488316 Screw Appelez-nous -
44 2149783 Wiring Assembly, Door Appelez-nous -
45 WP3400906 Screw   (Replaces: 489000) Special Order $ 7.84


    View Diagram in Separate Window     Print Icon   Print Part List

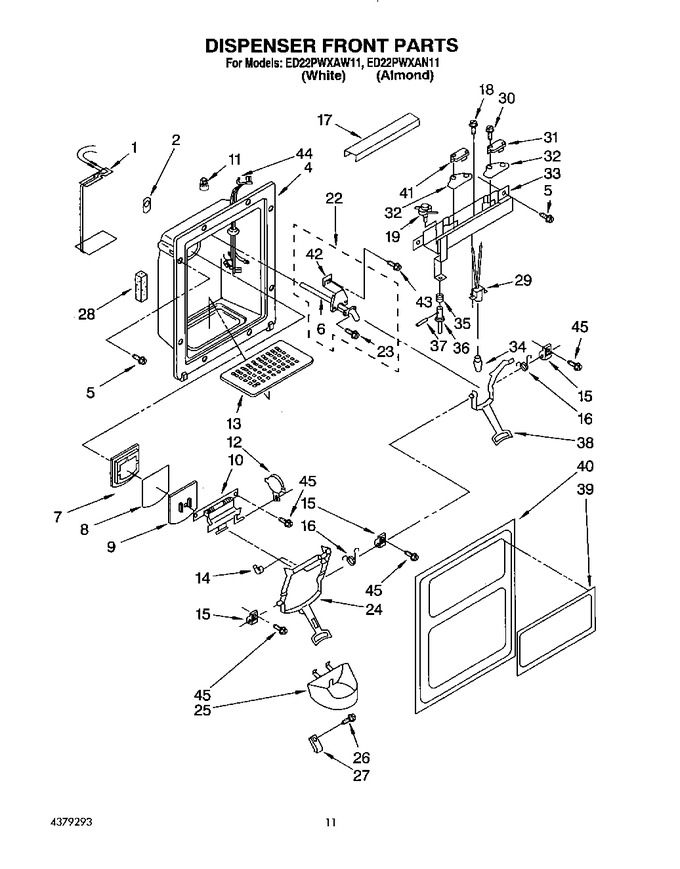

Diagram for ED22PWXAN11
