SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Freezer Interior


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit

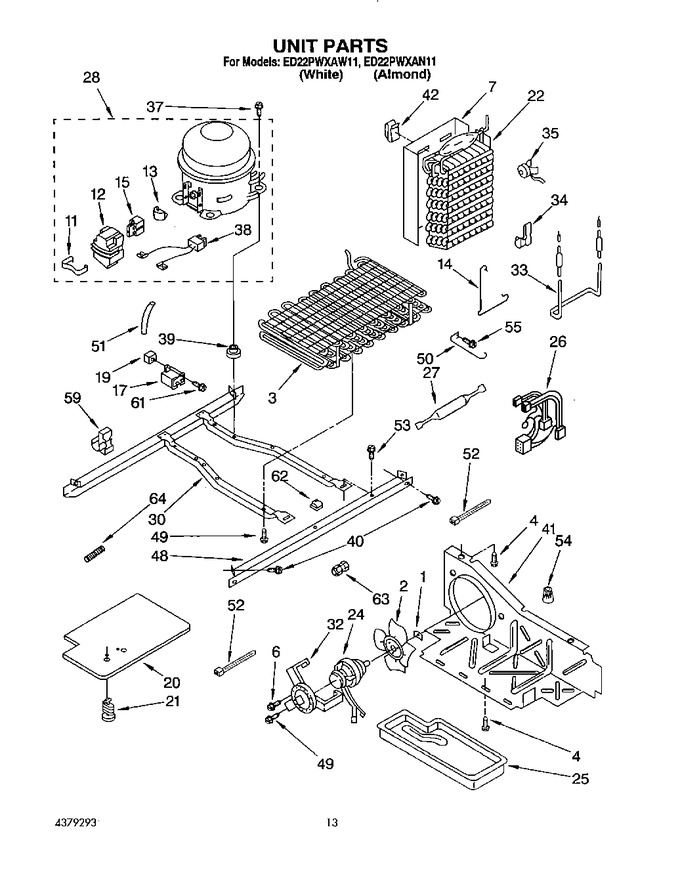

10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	1108179		Fan, Blade				$ 49.54
3	2164513		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
6	681390		Screw   (Replaces: 489019)				$ 13.06
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
11	938384		Strap		Appelez-nous	-
12	1108115		Cover		Appelez-nous	-
13	4388953		Overload (includes Relay)   (Replaces: 2154761)				$ 166.01
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
17	2154565		Capacitor		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
20	2160505		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 10.72
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 339.85
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 88.15
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2149199		Harness, Intermediate		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 52.57
28	876765		Tube Kit			Immediately	$ 86.33
28	2154558		Compressor (includes Items 11, 12, 13, 15, 17 & 38) (also Order)		Appelez-nous	-
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 233.03
32	2162062		Bracket, Fan Motor		Appelez-nous	-
33	2161322		Heater, Defrost				$ 82.12
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
37	876811		Screw   (Replaces: 489373)				$ 7.42
38	WP2172890		Wire Assembly   (Replaces: 1127675)				$ 8.10
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 96.38
42	2155547		Clip, Heat		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 40.58
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
52	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 7.90
53	WP489427		Screw   (Replaces: 489339)				$ 7.47
54	850145		Wire Connector		Appelez-nous	-
55	WP489478		Screw   (Replaces: 489242)				$ 7.75
59	2155658		Clip, Wire & Tube		Appelez-nous	-
61	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
62	934011		Clip, Tube (3)		Appelez-nous	-
63	WP4211117		Union   (Replaces: 2150347)				$ 9.96
64	978026		Valve, Access (5/16``)			Immediately	$ 128.09
64	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
64	978028		Valve, Access (1/2)		Appelez-nous	-
64	978029		Valve Access (5/8``)				$ 93.85
64	978030		Valve, Access (3/4``)				$ 130.71
64	876764		Valve, Access(3/16``)			Immediately	$ 91.35
64	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
64	983659		Tube, Spring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
