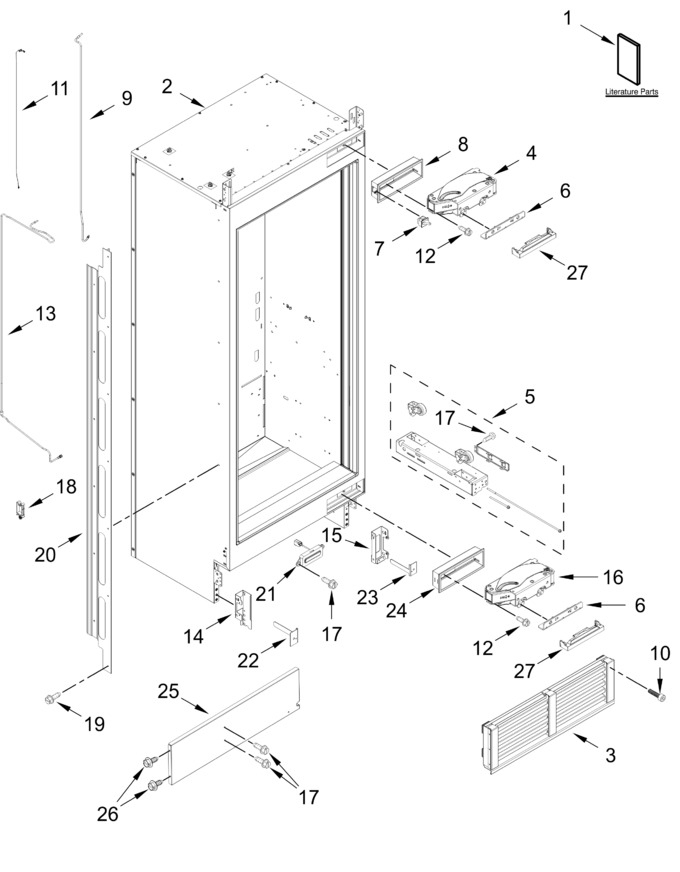

Cabinet Parts


Lower Unit And Tube Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Refrigerator Shelf Parts


Upper Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	ARI8576EDE2D568F203CA1E28095884C084		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	W11247668		Grille Assembly (charcoal Sparkle)   (Replaces: W10823626)		Appelez-nous	-
4	W11233362		Hinge, Top (charcoal Sparkle)   (Replaces: W11036483)			Immediately	$ 389.71
5	W11233365		Base Assembly, Roller (left)   (Replaces: W10761654)			Immediately	$ 305.74
6	W11234860		Bracket, Hinge Attach   (Replaces: W10891495)		Appelez-nous	-
7	W11642199		Switch, Light   (Replaces: W11560149)				$ 39.51
8	W11234282		Trim, Hinge (charcoal Sparkle)   (Replaces: W10900024)		Appelez-nous	-
9	W11247672		Tube, Filter Outlet Water   (Replaces: W11047886)				$ 128.01
10	W11247538		Screw   (Replaces: W10882791)			Immediately	$ 14.75
11	W10897083		Harness, Antenna		Appelez-nous	-
12	W10678210		Screw (black)				$ 19.80
13	W11233369		Tube, Water (also Order 2300868 - 5/16 In. Water Connector)   (Replaces: W11227357)				$ 132.27
14	W11028834		Mount Assembly, Grille (left, Includes Nut)				$ 85.05
15	W11028835		Mount Assembly, Grille (right, Includes Nut)				$ 97.05
16	W11233372		Hinge, Bottom (charcoal Sparkle)   (Replaces: W11036493)				$ 389.71
17	WPW10141625		Screw   (Replaces: W10141625)				$ 22.22
18	W11233386		Clip, Wire   (Replaces: W10604160)		Appelez-nous	-
19	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
20	W11233378		Trim, Cabinet Side (ebony, Non-hinge Side)   (Replaces: W11111409)		Appelez-nous	-
21	W11234285		Module, Wifi   (Replaces: W10861217)				$ 181.84
22	W10848725		Adjustable Assembly, Toekick (left)				$ 164.99
23	W10848724		Adjustable Assembly, Toekick (right)		Appelez-nous	-
24	W11249239		Trim, Hinge (charcoal Sparkle)   (Replaces: W10900023)		Appelez-nous	-
25	W11618050		Panel, Mc Rear   (Replaces: W10772059)		Appelez-nous	-
26	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
27	W11235093		Cover, Hinge Bracket   (Replaces: W10895127)			Immediately	$ 112.47
	W11362242		Tech Sheet		Appelez-nous	-
	W11644495		Energy Guide		Appelez-nous	-
	W11233364		Base Assembly, Roller (right)   (Replaces: W10761653)			Immediately	$ 305.83
	W11233379		Trim, Cabinet Side (ebony, Right)   (Replaces: W11111407)				$ 187.76
	W11362247		Use And Care Guide		Appelez-nous	-
	W11362249		Installation Instructions		Appelez-nous	-
