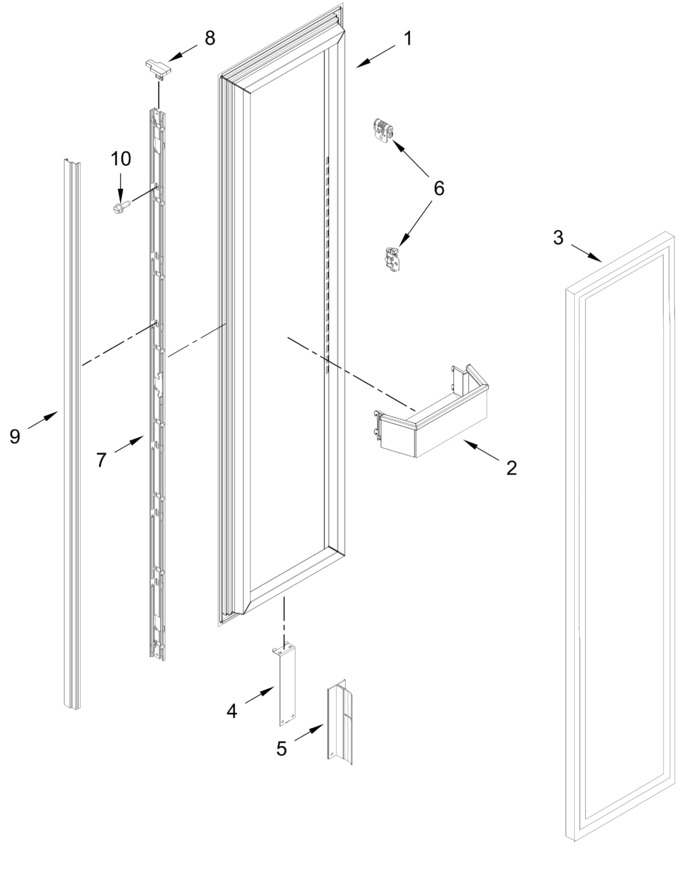

Refrigerator Door Parts
Refrigerator Liner Parts
Refrigerator Shelf Parts
Upper Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11757588 | Door, Refrigerator (Replaces: W10823675) |
|
$ 1,504.19 | |||||
| 2 | W11248036 | Bin, Door (Replaces: W10824624) |
|
$ 372.06 | |||||
| 3 | W11038433 | Gasket, Door (black) |
|
Immediately | $ 333.56 | ||||
| 4 | W11775252 | Bracket, Air Divider (black) (Replaces: W11761893) |
|
- | |||||
| 5 | W11233377 | Divider, Air (Replaces: W10908495) |
|
- | |||||
| 6 | W11235097 | Adjuster Assembly, Panel (horizontal) (Replaces: W11215770) |
|
$ 111.53 | |||||
| 7 | W11302040 | Bracket, Panel Adjust (Replaces: W11105107) |
|
- | |||||
| 8 | W11302061 | Cap, Panel Adjust Trim (Replaces: W10895136) |
|
Immediately | $ 87.94 | ||||
| 9 | W11299811 | Trim, Panel Adjust (Replaces: W11105109) |
|
$ 139.36 | |||||
| 10 | W11302041 | Screw (Replaces: W11085874) |
|
$ 14.75 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11235098 | Adjuster Assembly, Panel (vertical) (Replaces: W11215289) |
|
- | ||||||
| W11234308 | Gauge, Door (Replaces: W11028745) |
|
$ 17.62 |
