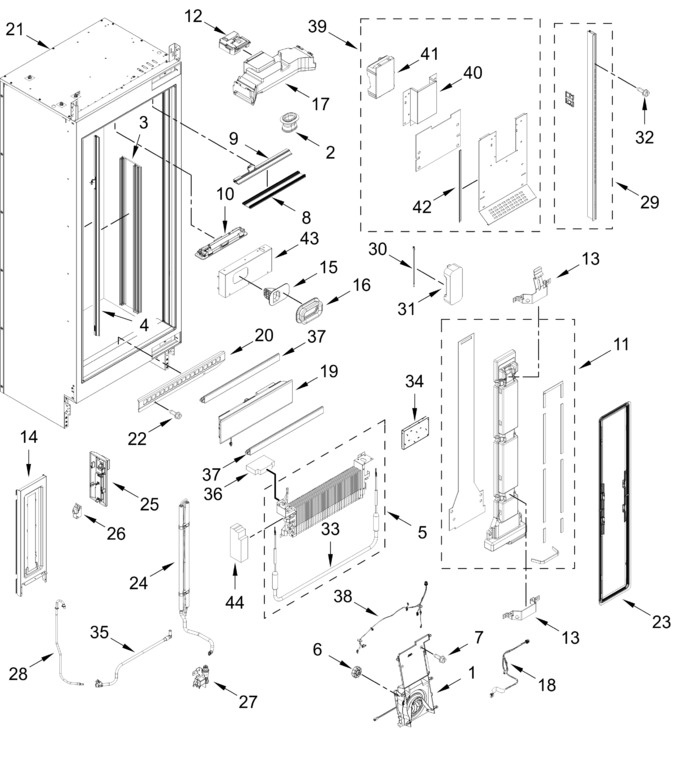

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233380		Fan Assembly, Radial   (Replaces: W10769486)			Immediately	$ 318.96
2	W10370680		Fitting, Drain				$ 37.83
3	W11235099		Cover, Led Side   (Replaces: W10816886)		Appelez-nous	-
4	W11233381		Strip Assembly, Led (left)   (Replaces: W10826246)				$ 226.77
5	W11645572		Evaporator And Heater Assembly   (Replaces: W11351160)			Immediately	$ 382.62
6	W10225833		Grommet, Motor				$ 41.69
7	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
8	W11247681		Cover, Led Top   (Replaces: W10816894)		Appelez-nous	-
9	W11247682		Strip, Top Led   (Replaces: W10826250)			Immediately	$ 202.98
10	W11233384		Strip Assemby, Light   (Replaces: W10914639)			Immediately	$ 205.89
11	W11235114		Gasket Assembly, Air Tower (includes Air Tower)   (Replaces: W11176554)				$ 97.93
12	W11235115		Damper Assembly, Duct (includes Heater)   (Replaces: W10872906)			Immediately	$ 219.64
13	W11036131		Bracket Assembly, Upper Air Tower (includes Rubber Rivets, Washers And Screws)		Appelez-nous	-
14	W11247698		Wall, False   (Replaces: W10816933)		Appelez-nous	-
15	W11235116		Duct, Deli   (Replaces: W10816934)				$ 103.71
16	W11235118		Gasket, Deli Duct   (Replaces: W10916552)		Appelez-nous	-
17	W11247699		Duct Assembly, Mullion (includes Damper)   (Replaces: W10863620)		Appelez-nous	-
18	W11247700		Harness, Damper   (Replaces: W10810632)		Appelez-nous	-
19	W11404240		User Interface Assembly   (Replaces: W11383518)				$ 428.91
20	W11775256		Grille, Air Return (black)   (Replaces: W11761895)		Appelez-nous	-
21	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
22	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
23	W11235123		Panel Assembly, Air Tower   (Replaces: W10816938)				$ 379.69
24	W11603843		Reservoir, Water   (Replaces: W11518279)				$ 137.84
25	W11247958		Cover Assembly, Dispenser   (Replaces: W10880332)				$ 120.69
26	WP12575502		Switch, Limit   (Replaces: 12575502)			Immediately	$ 65.13
27	W11247961		Valve, Single Solenoid   (Replaces: W11135656)			Immediately	$ 213.62
28	W11248065		Tube, Dispenser Water   (Replaces: W11233653)			Immediately	$ 127.13
29	W11234825		Ladder, Shelf (left, Includes Screw Guide)   (Replaces: W10905671)			Immediately	$ 154.95
30	W11234826		Thermistor   (Replaces: W11084854)			Immediately	$ 126.39
31	W11235125		Cover, Thermistor   (Replaces: W10912104)				$ 108.10
32	W11234828		Screw (black)   (Replaces: W11288606)		Appelez-nous	-
33	W11646154		Heater, Defrost   (Replaces: W11312289)				$ 172.78
34	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
35	W11579165		Tube, Dispenser Water (valve)   (Replaces: W11518280)			Immediately	$ 95.94
36	W11308228		Block, Air Bypass (evaporator, Left Hand)   (Replaces: W11216922)		Appelez-nous	-
37	W11307273		Crossbar, Mullion Control (upper)   (Replaces: W10816927)				$ 151.74
38	W11642297		Harness, Evaporator (includes Thermistor)   (Replaces: W11574922)			Immediately	$ 116.72
39	W11645575		Cover Assembly, Evaporator (includes Insulation)   (Replaces: W11441797)		Appelez-nous	-
40	W11299623		Cover, Evaporator Panel (u Shape)   (Replaces: W10895218)		Appelez-nous	-
41	W11299416		Cover, Evaporator Insulation   (Replaces: W10780861)		Appelez-nous	-
42	W11299413		Gasket, Evaporator Panel   (Replaces: W10895214)		Appelez-nous	-
43	W11308215		Cover, Manifold   (Replaces: W10816948)		Appelez-nous	-
44	W11308216		Block, Evaporator Bypass (includes Foil)   (Replaces: W10881370)		Appelez-nous	-
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	W11234551		Ladder, Shelf (right, Includes Screw Guide)   (Replaces: W10905672)			Immediately	$ 154.95
	W11506619		8 Nk Ms 00			Immediately	$ 25.88
	W11036132		Bracket Assembly, Lower Air Tower (includes Rubber Rivets, Washers And Screws)		Appelez-nous	-
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	W11504451		(3/1.8 Nr Ms 00)			Immediately	$ 46.25
	W11308229		Block, Air Bypass (evaporator, Right Hand)   (Replaces: W11216921)		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	W11307274		Crossbar, Mullion Control (lower)   (Replaces: W10887670)				$ 151.00
	W11233382		Strip Assembly, Led (right)   (Replaces: W10901633)				$ 301.28
