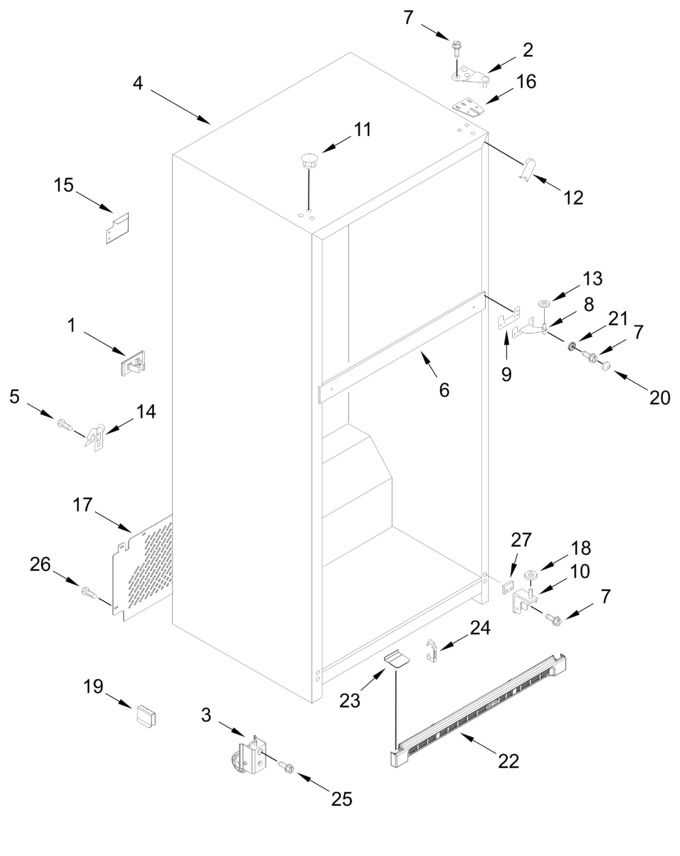

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11501419		Clip, Tube   (Replaces: W10352217)			Immediately	$ 12.10
2	WP2261963		Hinge Assembly, Top   (Replaces: 2261963)			Immediately	$ 99.45
3	W10849386		Roller Assembly   (Replaces: W10725960)				$ 114.75
4	ARIF06CCFE9BD0F0FDB975806FEDA58D816		Cabinet (not Serviced)		Appelez-nous	-
5	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
6	ARIC034192546E98BAD7D6171A40486F101		Rail, Center (not Serviced)		Appelez-nous	-
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
8	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
9	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 11.18
10	WP2254473		Hinge, Bottom   (Replaces: 2254473)				$ 9.28
11	WPW10520304		Plug, Hole (white)   (Replaces: W10520304)			Immediately	$ 19.22
12	W11219639		Filler, Corner (white)				$ 11.88
13	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 11.42
14	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 22.12
15	W11528668		Access Cover, Valve   (Replaces: W11458717)		Appelez-nous	-
16	W11169703		Shim, Top Hinge (white)   (Replaces: 2221885)				$ 15.79
17	W11307290		Cover, Unit		Appelez-nous	-
18	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 9.88
19	WP2174706		Clip, Roller   (Replaces: 2174706)				$ 11.53
20	W10846529		Cap, Dome (white)   (Replaces: W10674771)			Immediately	$ 19.82
21	W10847959		Cap, Washer Dome   (Replaces: W10674773)				$ 11.27
22	W10839426		Grille (white)   (Replaces: W10592141)				$ 83.07
23	W10600071		Cover, Toe Grille (white)				$ 102.01
24	2254385		Clip, Grille				$ 88.87
25	3400524		Screw   (Replaces: W10142287)				$ 13.28
26	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 8.28
27	WP2201567		Shim, Hinge (bottom)   (Replaces: 2201567)			Immediately	$ 8.16
