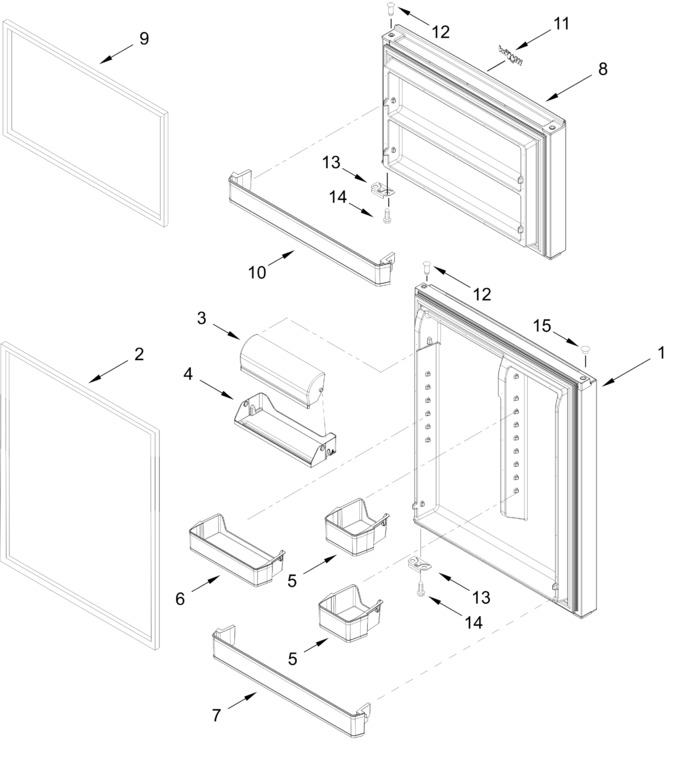

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826646		Door, Refrigerator (white, Includes Door Gasket)   (Replaces: W11776731)		Appelez-nous	-
2	W10860480		Gasket, Door (white)   (Replaces: W11406596)				$ 309.74
3	W11675283		Compartment, Door   (Replaces: W10601425)				$ 34.34
4	W11829865		Bin, Rc Door Daily Base   (Replaces: W11700174)		Appelez-nous	-
5	W11829842		Bin, Rc Door (short)   (Replaces: W11757100)		Appelez-nous	-
6	W11807631		Bin, Rc Door (large)   (Replaces: W11750600)				$ 56.49
7	W11829843		Bin, Rc Door (xl)   (Replaces: W11757085)		Appelez-nous	-
8	W11826363		Door, Freezer (white, Includes Door Gasket)   (Replaces: W11776716)		Appelez-nous	-
9	W10741118		Gasket, Door (white)   (Replaces: W11406593)				$ 332.03
10	W11829864		Bin, Fc Door (xl)   (Replaces: W11757084)		Appelez-nous	-
11	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
12	W11759045		Thimble, Top (white)   (Replaces: W10492018)			Immediately	$ 12.34
13	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
14	W10276642		Screw   (Replaces: 8533904)				$ 6.41
15	WP2212648		Plug, Hinge Hole (white)   (Replaces: 2212648)			Immediately	$ 8.19
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11416038		Door Reversal Kit, White Model   (Replaces: W10662124)				$ 83.24
