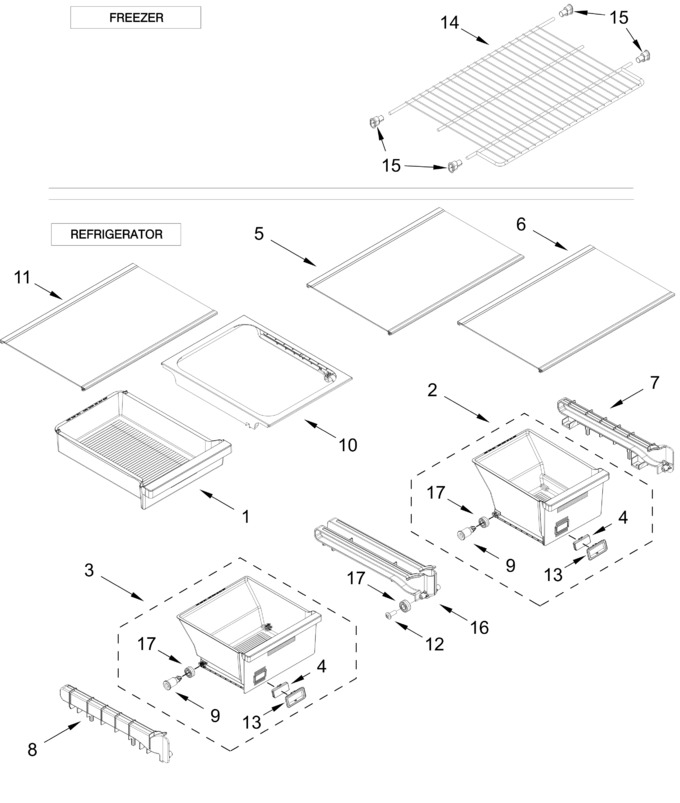

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11807626		Pan, Meat (half)   (Replaces: W11753544)		Appelez-nous	-
2	W11829867		Pan, 12 In Crisper   (Replaces: W11768940)		Appelez-nous	-
3	W11829868		Pan, 16 In Crisper   (Replaces: W11768938)		Appelez-nous	-
4	W10431229		Control, Humidity				$ 16.11
5	W11829871		Crisper Shelf Assembly   (Replaces: W11553152)		Appelez-nous	-
6	W11829872		Rc Shelf Assembly   (Replaces: W11553157)				$ 254.65
7	W11051442		Track Rail, Right Hand   (Replaces: W10694151)				$ 121.01
8	W11025586		Track Rail, Left Hand   (Replaces: W10694149)				$ 124.65
9	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 17.90
10	W10861519		Holder, Meat Pan   (Replaces: W10628698)			Immediately	$ 92.16
11	W11829869		Meat Shelf Assembly   (Replaces: W11771490)		Appelez-nous	-
12	WP3400065		Screw (stainless)   (Replaces: 3400065)			Immediately	$ 8.18
13	W10435530		Frame, Humidity Control				$ 16.29
14	W10477093		Shelf, Wire		Appelez-nous	-
15	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 14.70
16	W11652044		Rail, Center Track   (Replaces: W10694150)				$ 38.42
17	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 15.74
