SELECT A DIAGRAM
New Model Search:

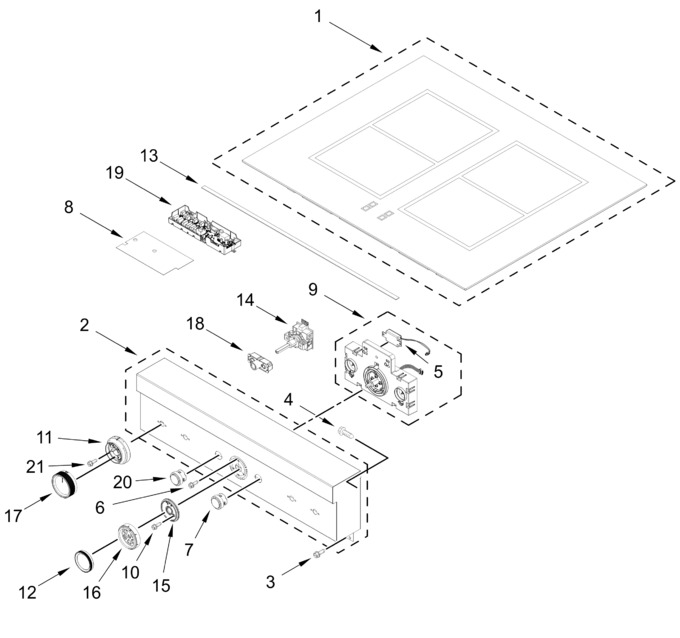

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11796139 | Glass Cooktop Assembly (Replaces: W11750794) |
|
$ 1,658.11 | |||||
| 2 | W11823350 | Console Panel (black Ore) (Replaces: W11768546) |
|
- | |||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 4 | 3196265 | Screw (Replaces: 3400099) |
|
- | |||||
| 5 | W11123146 | Speaker Assembly (Replaces: W10568405) |
|
$ 80.93 | |||||
| 6 | W10162096 | Screw |
|
$ 21.90 | |||||
| 7 | W11820147 | Button Assembly, Oven Start (black Ore) (Replaces: W11769831) |
|
- | |||||
| 8 | W11320149 | Barrier, Appliance Manager (Replaces: W11281269) |
|
$ 130.57 | |||||
| 9 | W11790604 | User Interface (Replaces: W11777683) |
|
- | |||||
| 10 | W11788785 | Screw (Replaces: W11755190) |
|
- | |||||
| 11 | W11821251 | Bezel, Induction (black Ore) (Replaces: W11748800) |
|
- | |||||
| 12 | W11820164 | Knob, Oven Temperature (black Ore) (Replaces: W11740404) |
|
- | |||||
| 13 | W11765170 | Console, Gasket (Replaces: W11697608) |
|
- | |||||
| 14 | W11765221 | Switch, Infinite (Replaces: W11704441) |
|
Immediately | $ 67.10 | ||||
| 15 | W11820163 | Bezel Assembly, Oven (black Ore) (Replaces: W11738553) |
|
- | |||||
| 16 | W11821252 | Knob, Oven Mode (black Ore) (Replaces: W11731059) |
|
- | |||||
| 17 | W11821253 | Knob, Induction (black Ore) (Replaces: W11731289) |
|
- | |||||
| 18 | W11766154 | Sleeve, Bezel (Replaces: W11697214) |
|
- | |||||
| 19 | W11790581 | Manager, Appliance (powermax) (Replaces: W11767303) |
|
$ 409.76 | |||||
| 20 | W11820165 | Button Assembly, Oven Light (black Ore) (Replaces: W11769833) |
|
- | |||||
| 21 | W11765213 | Screw (Replaces: W11736176) |
|
$ 29.86 | |||||
| W11321066 | Cord, Power (Replaces: W11212216) |
|
$ 118.94 | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| 7101P48560 | Screw, Anti-tip Kit |
|
- | ||||||
| W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 59.88 | ||||||
| W11790601 | Harness, Main (30 In) (Replaces: W11745816) |
|
- | ||||||
| W11790531 | Harness, Communication (Replaces: W11766035) |
|
$ 139.03 | ||||||
| W11765157 | Harness, Console (Replaces: W11712526) |
|
- | ||||||
| W10780278 | Harness, Door Lock |
|
Immediately | $ 95.87 | |||||
| W11766172 | Line Filter (Replaces: W11733662) |
|
Immediately | $ 182.07 | |||||
| W11765166 | Harness, User Interface Display (Replaces: W11705029) |
|
- |
