Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11823351 Kickplate (black Ore)   (Replaces: W11726296) Appelez-nous -
2 W11765274 Back, Chassis   (Replaces: W11758516) Appelez-nous -
3 WPW10138054 Roller Assembly   (Replaces: W10138054) Special Order $ 45.34

4 W11109583 Duct, Bottom (30 In) Appelez-nous -
5 7101P42660 Screw Appelez-nous -
6 W10859931 Leveler   (Replaces: 9760860) Special Order $ 119.11

7 W10908710 Base, Leveling Leg Special Order $ 145.26

8 WP4449743 Screw   (Replaces: 4449743) Special Order $ 7.55

9 W11369237 Cabinet, Appliance Manager Special Order $ 89.38

10 W10115869 Shaft, Long In-Stock Immediately $ 109.36

11 W10115793 Shaft, Short Special Order $ 75.83

12 489504 E-ring Special Order $ 7.40

13 W11765961 Bracket, Front   (Replaces: W11695224) Appelez-nous -
14 W11087491 Support, Channel Appelez-nous -
15 W11675844 Gasket, Cavity (30 In)   (Replaces: W11115328) In-Stock Immediately $ 74.56

16 W11765275 Duct-chassis, Rear   (Replaces: W11695987) Appelez-nous -
17 W11320146 Channel, Wire   (Replaces: W11084360) Appelez-nous -
18 W11362015 Retainer, Gasket (9 In) Special Order $ 158.18

19 W11324986 Top, Chassis Appelez-nous -
20 W11040802 Bottom, Chassis Appelez-nous -
21 W11765276 Panel, Back   (Replaces: W11683915) Appelez-nous -
22 W11034134 Panel, Back Bottom Appelez-nous -
23 W11765960 Duct, Extension   (Replaces: W11695808) Appelez-nous -
24 W11766160 Duct, Top   (Replaces: W11695196) Appelez-nous -
25 W11318207 Spring Clip, Range   (Replaces: W11036559) Special Order $ 12.88

26 W11320147 Drawer, Appliance Manager   (Replaces: W11106341) Appelez-nous -
27 W11765277 Panel, Cabinet Side (left)   (Replaces: W11707979) Appelez-nous -
28 W11765278 Panel, Cabinet Side (right)   (Replaces: W11707981) Appelez-nous -
29 W11765962 Bracket, Rear Chassis   (Replaces: W11758326) Appelez-nous -
30 7101P33860 Screw Appelez-nous -
31 W10115843 Cover, Ignition Appelez-nous -
32 W10130760 Bracket, Moving Console (left) Special Order $ 75.94

33 W10130759 Bracket, Moving Console (right) Special Order $ 75.94

34 WP9755546 Nut, Hidden   (Replaces: 9755546) Special Order $ 7.30

W11368870 Retainer, Gasket (12 In)   (Replaces: W10157511) Special Order $ 24.91


    View Diagram in Separate Window     Print Icon   Print Part List

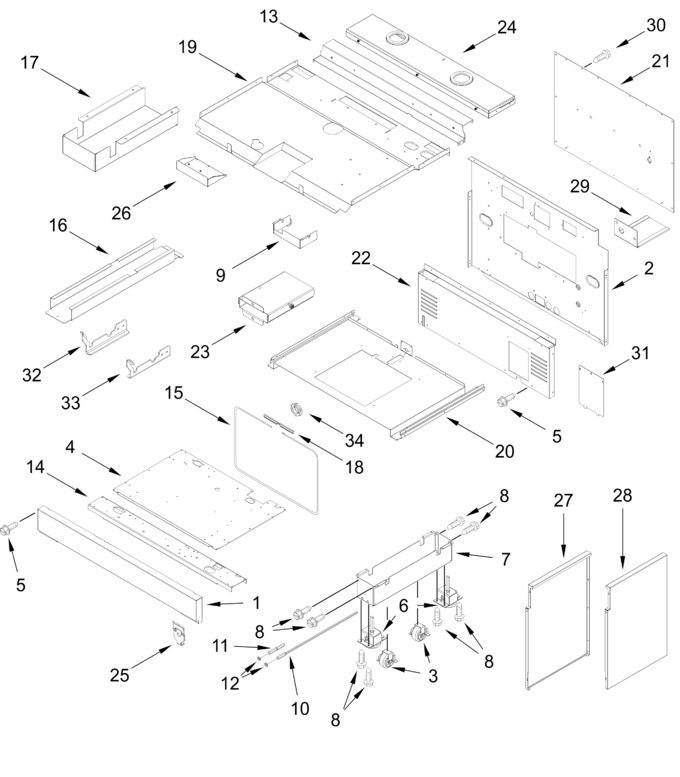

Diagram for KFIS930SBE00
