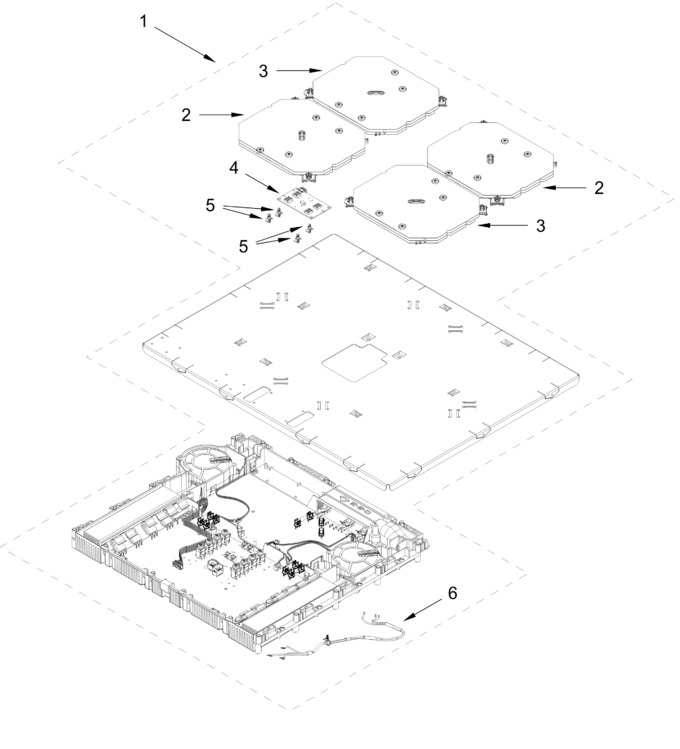

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11765171		Urso Module Assembly   (Replaces: W11696299)				$ 1,228.33
2	W11766155		Element, Induction (variant 2)   (Replaces: W11710573)		Appelez-nous	-
3	W11766157		Element, Induction (variant 1)   (Replaces: W11710574)		Appelez-nous	-
4	W11766158		User Interface Service Kit   (Replaces: W11711823)		Appelez-nous	-
5	W11765223		Locking Pin, User Interface   (Replaces: W11748007)		Appelez-nous	-
6	W11765271		Harness, Induction Module To Main Harness   (Replaces: W11704825)		Appelez-nous	-
