Burner Assembly Parts


Dryer Bulkhead Parts


Dryer Cabinet Parts


Dryer Door Parts


Optional Parts (not Included)


Tub And Basket Parts


Washer Cabinet Parts


Washer Dispenser Parts


Washer Door Parts


Washer/dryer Console Parts


Water System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

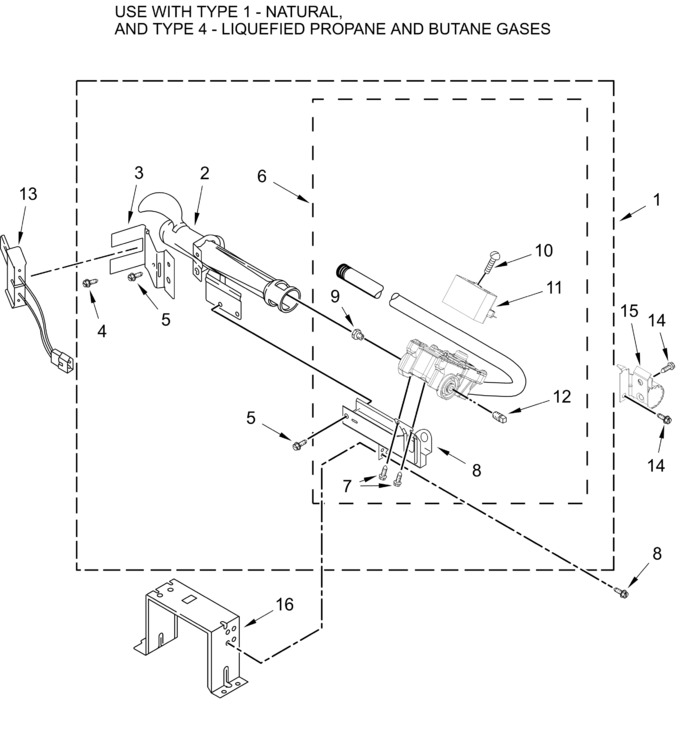

1	W11652258		Burner Assembly 60 Hz.   (Replaces: W11564941)			Immediately	$ 413.41
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	WPW10366705		Screw   (Replaces: W10366705)				$ 7.88
5	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
6	W11646259		Valve, Gas 60 Hz. (complete)   (Replaces: W11564944)				$ 368.92
7	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
8	3389871		Base, Burner				$ 83.25
9	WP15418		Orifice (type 1, Natural)   (Replaces: 15418)				$ 37.32
10	326049536		Screw		Appelez-nous	-
11	WPW10328463		Coil (60 Hz)   (Replaces: W10328463)			Immediately	$ 79.02
12	W10295523		Pipe Plug		Appelez-nous	-
13	W11835775		Ignitor   (Replaces: W11550647)		Appelez-nous	-
14	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
15	3978776		Bracket, Gas Pipe		Appelez-nous	-
16	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
	WP229742		Orifice (type 4, Propane)   (Replaces: 234867)				$ 36.59
	15422		Orifice (type 4, Propane)				$ 3,441.42
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARI8A46BA2C7F604FCE98147E787988E51A		Ba-170		Appelez-nous	-
	W11581317		Kit, Lp Gas Dryer Conversion			Immediately	$ 93.17
