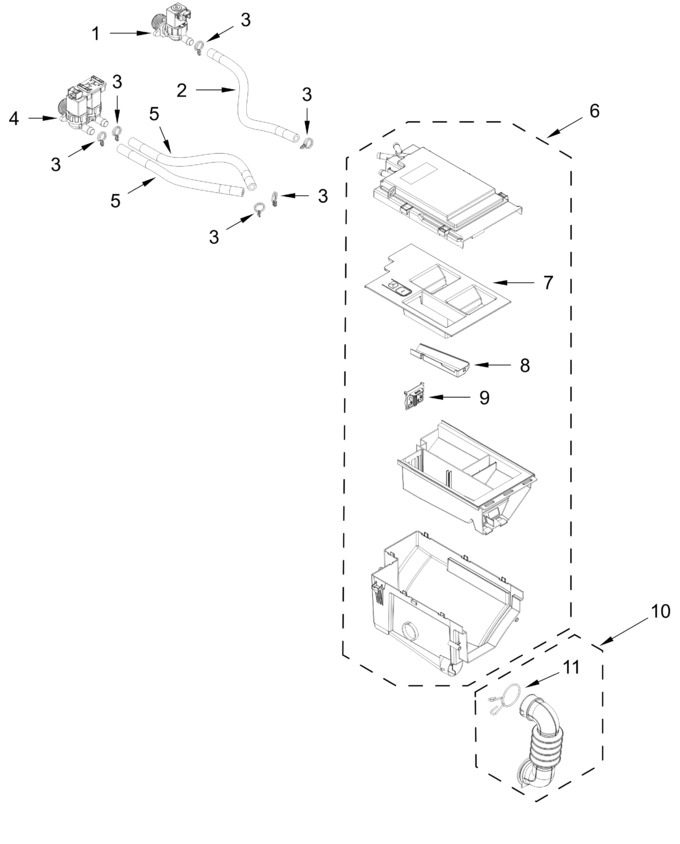

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11688994 | Valve, Inlet (single) (Replaces: W11486360) |
|
Immediately | $ 92.73 | ||||
| 2 | W11316257 | Hose, Inlet (hot) (Replaces: W10920135) |
|
Immediately | $ 32.73 | ||||
| 3 | WP596669 | Clamp, Hose (Replaces: W10096851) |
|
Immediately | $ 8.40 | ||||
| 4 | W11688995 | Valve, Inlet (double) (Replaces: W11486361) |
|
Immediately | $ 94.18 | ||||
| 5 | W11316599 | Hose, Inlet (cold) (Replaces: W10920133) |
|
$ 32.75 | |||||
| 6 | W11825360 | Assembly, Dispenser (Replaces: W11783894) |
|
- | |||||
| 7 | W11772011 | Siphon, Bleach/softener (Replaces: W11709299) |
|
$ 94.74 | |||||
| 8 | W11825361 | Cover, Detergent Drawer (Replaces: W11784776) |
|
- | |||||
| 9 | W11316603 | Separator, Siphon (Replaces: W10918519) |
|
$ 68.21 | |||||
| 10 | W11316604 | Assembly, Dispenser Hose (Replaces: W10920132) |
|
Immediately | $ 23.59 | ||||
| 11 | W10239910 | Clamp, Hose |
|
Immediately | $ 59.43 |
