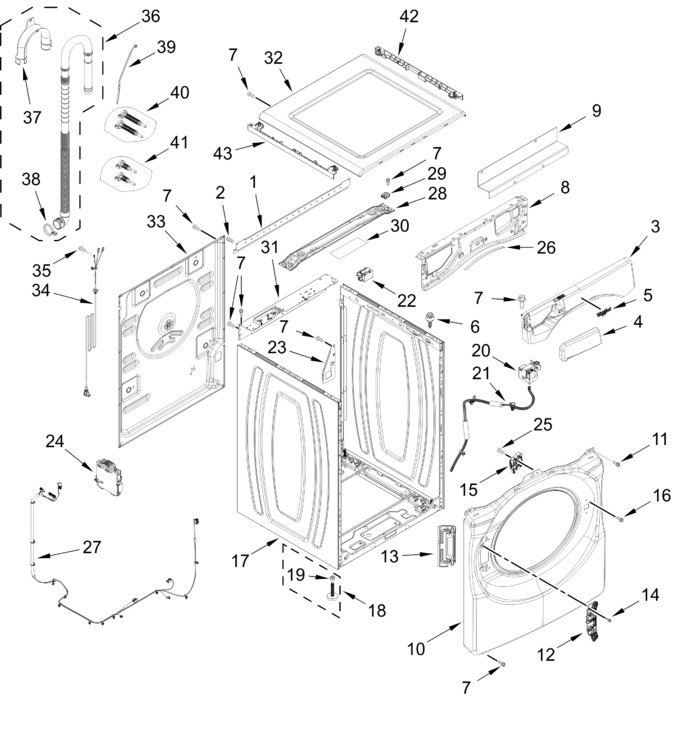

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11825359 | Bracket, Rear (Replaces: W11782241) |
|
- | |||||
| 2 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 3 | W11825354 | Console Dispenser, Front (radiant Silver) (Replaces: W11784295) |
|
- | |||||
| 4 | W11825355 | Handle, Dispenser (radiant Silver) (Replaces: W11787612) |
|
- | |||||
| 5 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 6 | W10208380 | Screw And Bushing Assembly |
|
$ 72.48 | |||||
| 7 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 8 | W11314678 | Bracket, Console (Replaces: W10915381) |
|
$ 156.02 | |||||
| 9 | W11825358 | Bracket, Front (Replaces: W11782238) |
|
- | |||||
| 10 | W11748895 | Panel, Front (radiant Silver) (Replaces: W11710564) |
|
$ 487.38 | |||||
| 11 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 8.43 | ||||
| 12 | W11742046 | Assembly, Hinge (Replaces: W11668720) |
|
Immediately | $ 162.31 | ||||
| 13 | W11747862 | Bracket, Hinge (Replaces: W11715541) |
|
$ 50.74 | |||||
| 14 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 15 | W11733849 | Lock, Door (Replaces: W11670890) |
|
Immediately | $ 73.95 | ||||
| 16 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 17 | W11715930 | Cabinet (radiant Silver) |
|
$ 519.20 | |||||
| 18 | W11675697 | Leveling Leg Assembly (Replaces: W11604388) |
|
$ 14.26 | |||||
| 19 | W11675698 | Nut, Hex (Replaces: W11599138) |
|
$ 13.55 | |||||
| 20 | W11316246 | Pressure Switch (Replaces: W11125159) |
|
Immediately | $ 103.04 | ||||
| 21 | W11456953 | Hose, Pressure Switch (Replaces: W11319791) |
|
Immediately | $ 34.90 | ||||
| 22 | W11689659 | Rfi Filter (Replaces: W11533492) |
|
Immediately | $ 22.49 | ||||
| 23 | W11316769 | Bracket, Drain Hose (Replaces: W11091443) |
|
Immediately | $ 22.09 | ||||
| 24 | W11825356 | Appliance Control Unit (acu) (Replaces: W11787397) |
|
- | |||||
| 25 | W10306501 | Screw |
|
- | |||||
| 26 | W11316770 | Edge Guard (Replaces: W10407376) |
|
- | |||||
| 27 | W11825357 | Harness, Main (Replaces: W11772294) |
|
- | |||||
| 28 | W10467484 | Brace, Top |
|
$ 44.98 | |||||
| 29 | W11846996 | Retainer, Spring (Replaces: W10245452) |
|
$ 10.07 | |||||
| 30 | W11314674 | Foam Pad (Replaces: W10331064) |
|
$ 19.90 | |||||
| 31 | W11353016 | Bracket, Rear |
|
$ 24.92 | |||||
| 32 | W11748893 | Top (radiant Silver) (Replaces: W11715212) |
|
Immediately | $ 353.01 | ||||
| 33 | W11491750 | Panel, Rear (Replaces: W11420275) |
|
Immediately | $ 361.60 | ||||
| 34 | W11316254 | Cord, Power (Replaces: W10919946) |
|
Immediately | $ 134.51 | ||||
| 35 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 36 | W11281268 | Hose, Drain (external) (Replaces: W10267638) |
|
Immediately | $ 18.26 | ||||
| 37 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 38 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 39 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 8.30 | |||||
| 40 | W11316631 | Bolt, Transport (long) (Replaces: W11041287) |
|
$ 42.55 | |||||
| 41 | W11316629 | Bolt, Transport (short) (Replaces: W11041011) |
|
$ 43.73 | |||||
| 42 | W11825371 | Collar (right) (Replaces: W11782181) |
|
- | |||||
| 43 | W11825370 | Collar (left) (Replaces: W11782183) |
|
- |
