Dispenser Parts
Door Parts
Optional Parts (not Included)
Top And Cabinet Parts
Tub And Basket Parts
Water System Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

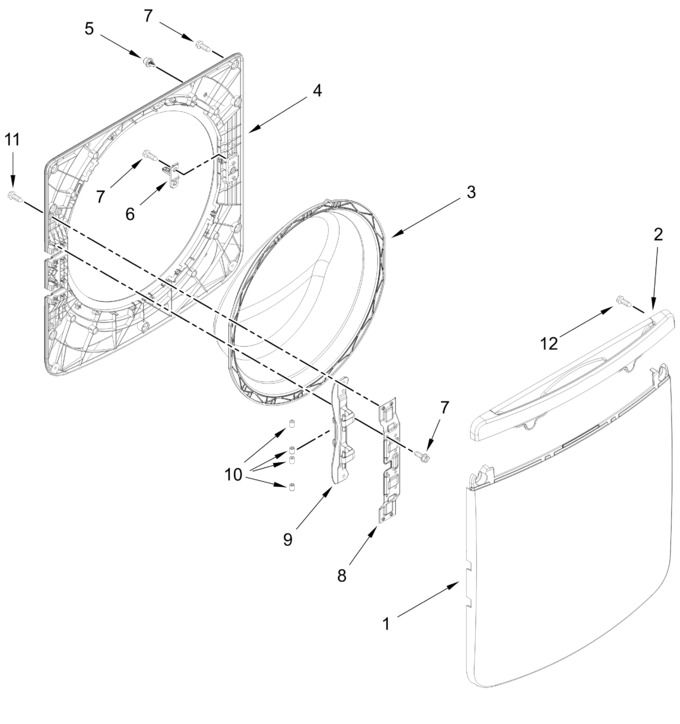

| 1 | W11316913 | Outer Door Assembly (gray) (Replaces: W11196016) |
|
Immediately | $ 376.07 | ||||
| 2 | W10626040 | Door Handle (chrome Shadow) |
|
$ 220.92 | |||||
| 3 | W11316777 | Door, Clear Insert (Replaces: W11171604) |
|
$ 298.76 | |||||
| 4 | W11316776 | Door, Inner (Replaces: W11178958) |
|
Immediately | $ 175.18 | ||||
| 5 | W11310051 | Bumper, Door (lower) (Replaces: W11178950) |
|
Immediately | $ 23.61 | ||||
| 6 | W11316914 | Strike, Door (Replaces: W10921697) |
|
Immediately | $ 28.72 | ||||
| 7 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.94 | |||||
| 8 | W10839743 | Plate, Hinge Retainer (Replaces: W10312805) |
|
$ 21.56 | |||||
| 9 | WPW10208415 | Hinge, Base (Replaces: W10208415) |
|
Immediately | $ 117.42 | ||||
| 10 | WPW10208398 | Cap, Hinge (Replaces: W10208398) |
|
Immediately | $ 21.47 | ||||
| 11 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.03 | |||||
| 12 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.19 |
