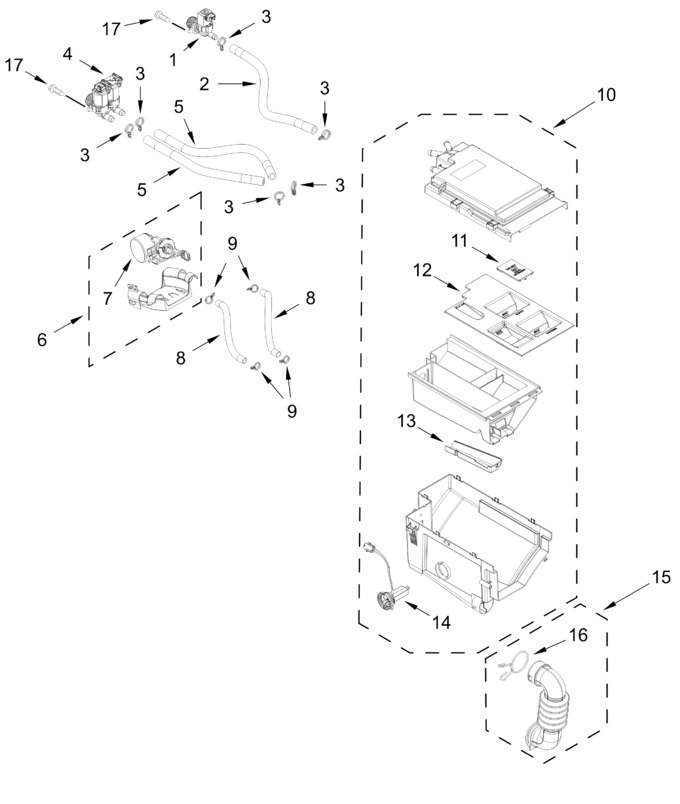

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11688994		Valve, Inlet (single)   (Replaces: W11036928)			Immediately	$ 92.73
2	W11316257		Hose, Inlet (hot)   (Replaces: W10920135)			Immediately	$ 32.73
3	WP596669		Clamp, Hose   (Replaces: W10096851)			Immediately	$ 8.40
4	W11688995		Valve, Inlet (double)   (Replaces: W11036930)			Immediately	$ 94.18
5	W11316599		Hose, Inlet (cold)   (Replaces: W10920133)				$ 32.75
6	W11316271		Dosing Pump Assembly   (Replaces: W11041150)			Immediately	$ 325.01
7	W11318806		Pump, Metering   (Replaces: W10903621)			Immediately	$ 318.72
8	W11316272		Hose   (Replaces: W11041152)				$ 32.91
9	WP596669		Clamp, Hose   (Replaces: 9724997)			Immediately	$ 8.40
10	W11524106		Dispenser Assembly   (Replaces: W11486356)			Immediately	$ 227.71
11	W11316374		Lid, Dispenser   (Replaces: W11106530)				$ 32.06
12	W11316373		Cover, Dispenser   (Replaces: W11106527)				$ 98.40
13	W11316375		Cover, Detergent Drawer   (Replaces: W11106522)				$ 77.81
14	W11316376		Detergent Sensor Assembly   (Replaces: W11041160)				$ 213.02
15	W11316604		Dispenser Hose Assembly   (Replaces: W10920132)			Immediately	$ 23.59
16	W10239910		Clamp, Hose			Immediately	$ 59.43
17	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.82
