Dispenser Parts


Door Parts


Optional Parts (not Included)


Top And Cabinet Parts


Tub And Basket Parts


Water System Parts

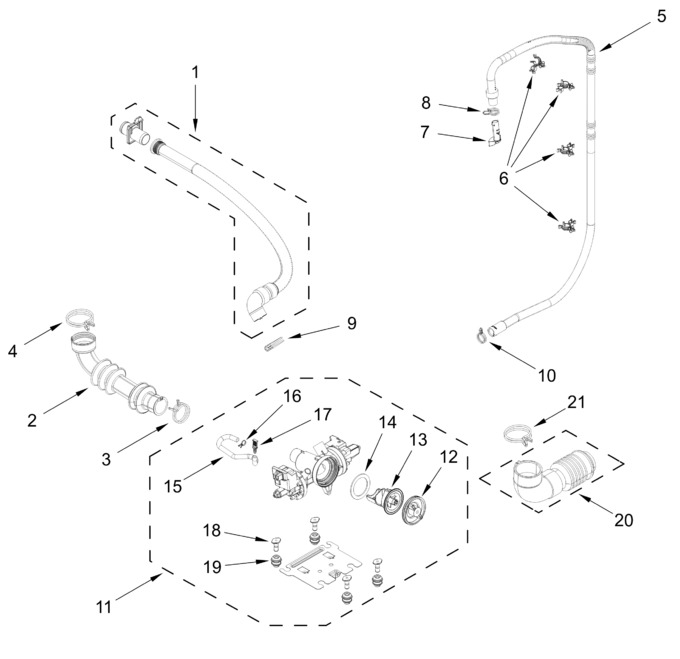

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11549455		Drain Hose Assembly   (Replaces: W11507443)			Immediately	$ 34.57
2	W11316056		Hose, Tub To Pump   (Replaces: W10921959)				$ 33.99
3	WP616099		Clamp, Hose   (Replaces: 370448)			Immediately	$ 7.81
4	W10273034		Clamp, Vent Hose				$ 10.69
5	W11316605		Hose, Pump To Bellow   (Replaces: W11170933)				$ 33.83
6	W11316608		Clip, Hose   (Replaces: W11050231)		Appelez-nous	-
7	W11316251		Nozzle, Water   (Replaces: W10796538)				$ 85.58
8	WP596669		Clamp, Hose   (Replaces: 9724996)			Immediately	$ 8.40
9	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
10	W11316607		Clamp, Hose   (Replaces: 8533888)			Immediately	$ 22.11
11	W11458345		Pump Assembly   (Replaces: W11319789)			Immediately	$ 177.45
12	W11316610		Cap, Filter   (Replaces: W10921834)				$ 55.72
13	W11458347		Filter, Pump   (Replaces: W11319788)				$ 9.26
14	W11316613		Seal, Filter Cap   (Replaces: W10921839)				$ 22.17
15	W11316662		Hose, Drain (pump)   (Replaces: W10782741)			Immediately	$ 32.16
16	W11316666		Clamp, Hose   (Replaces: W10834076)		Appelez-nous	-
17	W11316669		Plug, Drain (pump)   (Replaces: W10834077)				$ 22.07
18	W11316664		Grommet, Pin (pump)   (Replaces: W11133160)				$ 21.33
19	W11316663		Grommet (pump)   (Replaces: W11126910)				$ 21.42
20	W11599075		Hose, Ventilation   (Replaces: W11495084)				$ 22.84
21	WP285655		Clamp, Hose   (Replaces: W10142630)			Immediately	$ 8.39
