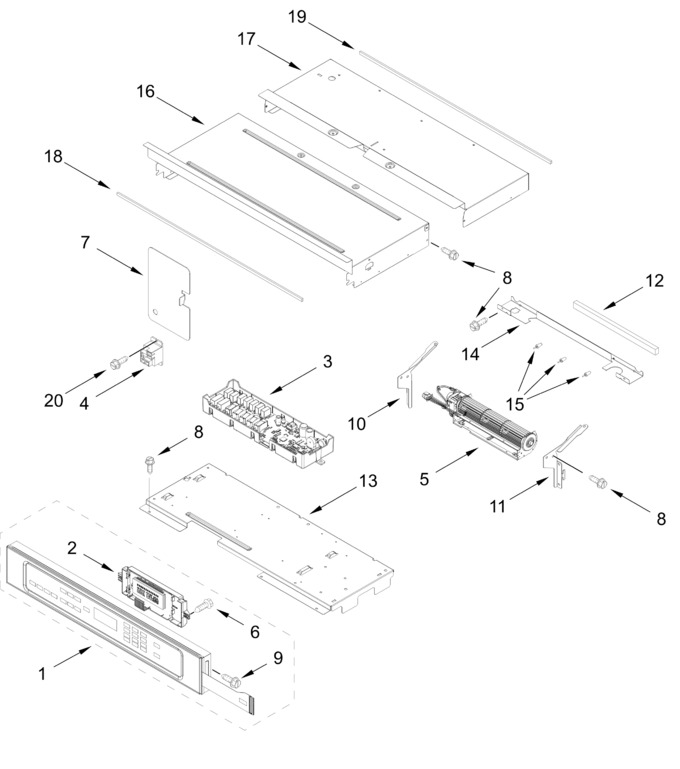

Control Panel Parts
Internal Oven Parts
Lower Oven Door Parts
Optional Parts (not Included)
Oven Parts
Upper Oven Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11818156 | Control Panel Assembly (stainless) |
|
- | |||||
| 2 | WPW10752316 | Interface (maxwell), User Board (Replaces: W10752316) |
|
Immediately | $ 423.85 | ||||
| 3 | W11837057 | Control, Maxwell (Replaces: W11815722) |
|
- | |||||
| 4 | W10874478 | Relay, Power (12v Dc Coil) |
|
$ 338.33 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 388.25 | ||||
| 6 | 7101P40360 | Screw |
|
- | |||||
| 7 | W11533682 | Cover, Wifi |
|
- | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.72 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 13 | W11179509 | Tray, Electronic |
|
- | |||||
| 14 | W11754858 | Divider, Chassis Back (Replaces: W11664750) |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 22.12 | |||||
| 16 | W11789693 | Cover, 30 In Chassis Top (front) (Replaces: W11767801) |
|
- | |||||
| 17 | W11223325 | Cover, 30 In Chassis Top (back) |
|
$ 85.77 | |||||
| 18 | W11226314 | Gasket, Rubber (735mm) (Replaces: W11162063) |
|
- | |||||
| 19 | W10728475 | Gasket, Rubber (380mm) |
|
$ 38.13 | |||||
| 20 | 7101P49860 | Screw |
|
- | |||||
| W11233570 | Harness, Console |
|
Immediately | $ 234.66 | |||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W11818417 | Bracket, Harness (Replaces: W11739132) |
|
- | ||||||
| W11837007 | Harness, Door Latch (Replaces: W11814358) |
|
- | ||||||
| W11837058 | Harness, Main (Replaces: W11671618) |
|
- | ||||||
| W11249912 | Harness, Signal |
|
- | ||||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| 4448664 | Clamp, Conduit |
|
$ 21.41 | ||||||
| W11157775 | Harness, Eol (mrc) (Replaces: W10409840) |
|
$ 231.69 | ||||||
| W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 23.47 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
