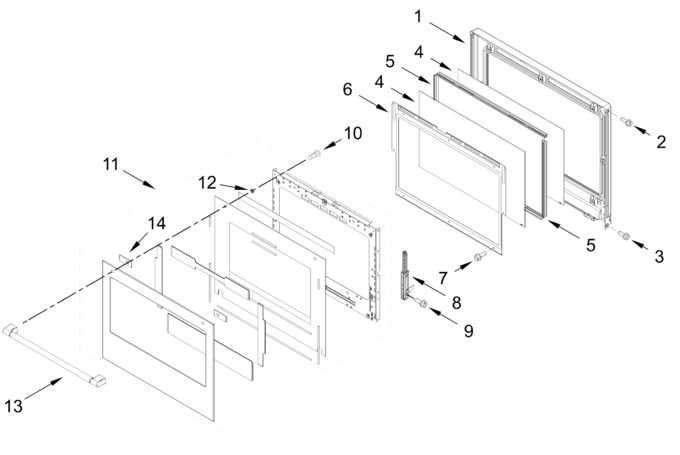

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11768649 | Liner Assembly (Replaces: W11699126) |
|
Immediately | $ 303.81 | ||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 14.77 | |||||
| 4 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
$ 247.71 | |||||
| 5 | W11736671 | Spacer, Air Divider (Replaces: W11647160) |
|
Immediately | $ 72.09 | ||||
| 6 | W11598182 | Retainer, Air Divider Glass (Replaces: W11174095) |
|
Immediately | $ 81.53 | ||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11700313 | Hinge, Door (left) (Replaces: W11296036) |
|
Immediately | $ 114.88 | ||||
| 9 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 10 | W11749091 | Screw (black) (Replaces: W11707001) |
|
$ 12.34 | |||||
| 11 | W11653608 | Door Assembly (stainless) (Replaces: W11470057) |
|
$ 979.04 | |||||
| 12 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 13 | W11648982 | Handle, Door (stainless) (Replaces: W11495825) |
|
$ 219.85 | |||||
| 14 | W10650497 | Spacer, Handle |
|
- | |||||
| W11699927 | Hinge, Door (right) (Replaces: W11296037) |
|
Immediately | $ 114.88 |
