Control Panel Parts
Internal Oven Parts
Lower Oven Door Parts
Optional Parts (not Included)
Oven Parts
Upper Oven Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

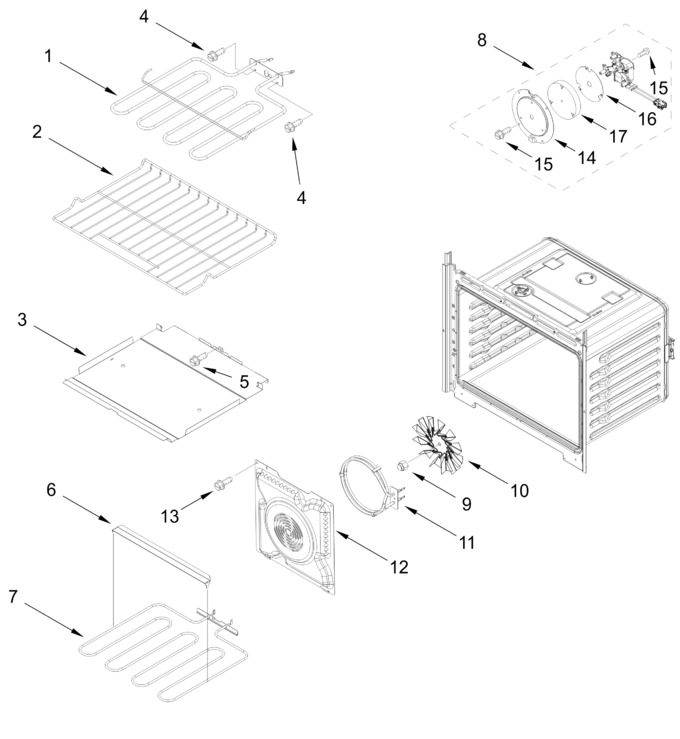

| 1 | W11617232 | Element, Broil (Replaces: W11238160) |
|
$ 131.38 | |||||
| 2 | W11218798 | Rack, Oven (Replaces: W11122597) |
|
Immediately | $ 358.35 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 195.83 | |||||
| 4 | 7101P43460 | Screw |
|
- | |||||
| 5 | 7101P42660 | Screw |
|
- | |||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 47.47 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W11292248) |
|
Immediately | $ 102.53 | ||||
| 8 | W11617227 | Convect Motor Assembly (Replaces: W11398058) |
|
Immediately | $ 159.60 | ||||
| 9 | W11548755 | Nut, Acorn (left Hand Thread) (Replaces: W11433702) |
|
$ 15.38 | |||||
| 10 | W11548753 | Blade, Fan (Replaces: W11425715) |
|
Immediately | $ 157.63 | ||||
| 11 | WPW10260248 | Ring, Element (Replaces: W10260248) |
|
$ 309.67 | |||||
| 12 | W10359278 | Baffle, Convection |
|
$ 249.22 | |||||
| 13 | WP74003976 | Screw (Replaces: W10906658) |
|
$ 7.55 | |||||
| 14 | W11617229 | Cover, Convect Plate (Replaces: W11398057) |
|
- | |||||
| 15 | W10850807 | Screw (Replaces: W10720084) |
|
$ 7.77 | |||||
| 16 | W11602629 | Plate, Convect Motor (Replaces: W11251715) |
|
- | |||||
| 17 | W11706806 | Insulation, Convect Motor (Replaces: W11251716) |
|
- |
