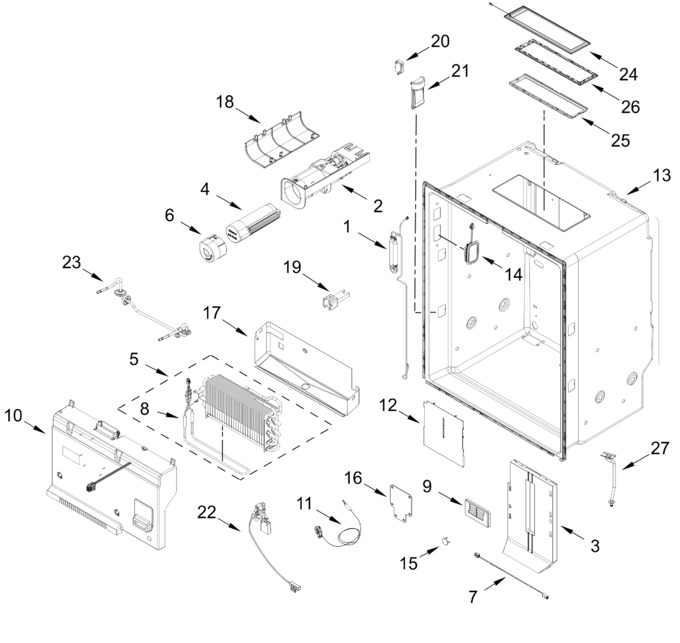

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11832350		Water Reservoir   (Replaces: W11600814)		Appelez-nous	-
2	W11839954		Water Filter Housing (grey)   (Replaces: W11611642)		Appelez-nous	-
3	W11832311		Air Tower Assembly   (Replaces: W11547384)		Appelez-nous	-
4	EDRARXD1B		Water Filter   (Replaces: W11536439)			Immediately	$ 49.99
5	W11832306		Rc Evaporator Assembly   (Replaces: W11646274)		Appelez-nous	-
6	W11839953		Water Filter Housing Plug (grey)   (Replaces: W11669933)		Appelez-nous	-
7	W11787131		Pantry Jumper Assembly   (Replaces: W11717382)		Appelez-nous	-
8	W11842424		Rc Defrost Heater   (Replaces: W11560605)		Appelez-nous	-
9	W11786940		Air Return Duct Grille   (Replaces: W11608374)		Appelez-nous	-
10	W11839931		Rc Evaporator Cover (grey)   (Replaces: W11607827)		Appelez-nous	-
11	W11787118		Thermistor, Refrigerator Temperature   (Replaces: W11669736)		Appelez-nous	-
12	W11839936		False Wall (grey)   (Replaces: W11725812)		Appelez-nous	-
13	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
14	W11845154		Led Light Module (grey)   (Replaces: W11598838)		Appelez-nous	-
15	W11839933		Screw Cover (grey)   (Replaces: W11594922)		Appelez-nous	-
16	W11787791		Port Lid Assembly   (Replaces: W11724694)		Appelez-nous	-
17	W11832307		Rc Evaporator Heat Shield   (Replaces: W11541797)		Appelez-nous	-
18	W11839955		Water Filter Housing Cover (grey)   (Replaces: W11611640)		Appelez-nous	-
19	W11807356		Water Tube Holder   (Replaces: W11775450)				$ 14.58
20	W11807357		Microswitch   (Replaces: W11777021)				$ 14.58
21	W11845155		Dispenser Fascia (black)   (Replaces: W11784324)		Appelez-nous	-
22	W11832308		Rc Evaporator Wire Assembly (includes Thermistor)   (Replaces: W11559745)		Appelez-nous	-
23	W11832302		Suction Tube Assembly   (Replaces: W11682877)		Appelez-nous	-
24	W11839160		Sky Light Led Panel   (Replaces: W11549348)		Appelez-nous	-
25	W11839162		Sky Light Lens (white Fog)   (Replaces: W11612596)		Appelez-nous	-
26	W11639426		Sky Light Trim (grey)		Appelez-nous	-
27	W11832349		Rc Evaporator Drain Tube   (Replaces: W11625314)		Appelez-nous	-
