SELECT A DIAGRAM

Cabinet Parts


Freezer Door Parts


Freezer Liner Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

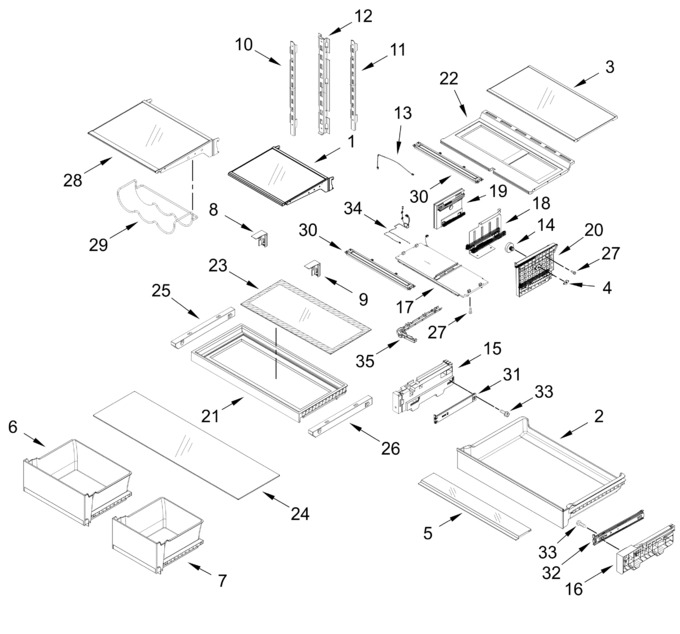

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11839956		Stationary Shelf   (Replaces: W11635897)		Appelez-nous	-
2	W11840135		Pantry Crisper Pan   (Replaces: W11579770)		Appelez-nous	-
3	W11845150		Full Width Shelf   (Replaces: W11635988)		Appelez-nous	-
4	W10840918		Side Support Flange				$ 93.47
5	W11840134		Pantry Crisper Pan Lid   (Replaces: W11699446)		Appelez-nous	-
6	W11839985		Crisper Pan (left Hand)   (Replaces: W11635676)		Appelez-nous	-
7	W11635692		Crisper Pan (right Hand)		Appelez-nous	-
8	W11840137		Pantry Adapter Cover (left Hand)   (Replaces: W11666150)		Appelez-nous	-
9	W11840138		Pantry Adapter Cover (grey, Right Hand)   (Replaces: W11666167)		Appelez-nous	-
10	W11840142		Shelf Ladder (left Side)   (Replaces: W11580674)		Appelez-nous	-
11	W11840144		Shelf Ladder (right Side)   (Replaces: W11599145)		Appelez-nous	-
12	W11840143		Shelf Ladder (center)   (Replaces: W11580676)		Appelez-nous	-
13	W11839973		Crisper Led Jumper Wire   (Replaces: W11652427)		Appelez-nous	-
14	W11840136		Side Support Knob   (Replaces: W11635707)		Appelez-nous	-
15	W11843634		Pantry Adapter (grey, Left Hand)   (Replaces: W11579713)		Appelez-nous	-
16	W11843635		Pantry Adapter (grey, Right Hand)   (Replaces: W11579716)		Appelez-nous	-
17	W11839972		Crisper Cover (grey, Includes Thermistor Harness)   (Replaces: W11718154)		Appelez-nous	-
18	W11839969		Crisper Center Support (grey)   (Replaces: W11635668)		Appelez-nous	-
19	W11839970		Crisper Adapter (left Hand)   (Replaces: W11635670)		Appelez-nous	-
20	W11839971		Crisper Adapter (right Hand)   (Replaces: W11635672)		Appelez-nous	-
21	W11845151		Platter Frame   (Replaces: W11635698)		Appelez-nous	-
22	W11839958		Pantry Crisper Cover   (Replaces: W11718150)		Appelez-nous	-
23	W11678909		Platter Glass		Appelez-nous	-
24	W11790757		Glass Crisper Cover   (Replaces: W11664614)			Immediately	$ 85.05
25	W11839983		Shelf Adapter (left Hand)   (Replaces: W11639975)		Appelez-nous	-
26	W11839984		Shelf Adapter (right Hand)   (Replaces: W11639976)		Appelez-nous	-
27	W10834284		Screw (grey)		Appelez-nous	-
28	W11839957		Undershelf Wine Assembly   (Replaces: W11677827)		Appelez-nous	-
29	W11821597		Wine Rack   (Replaces: W11691589)		Appelez-nous	-
30	W11793904		Led, Crisper Strip   (Replaces: W11651976)		Appelez-nous	-
31	W11843614		Pantry Glide (left Hand)   (Replaces: W11565942)		Appelez-nous	-
32	W11843616		Pantry Glide (right Hand)   (Replaces: W11540928)		Appelez-nous	-
33	W10854958		Screw   (Replaces: 12990302)				$ 7.90
34	W11842426		Thermistor Wire Assembly (pantry)   (Replaces: W11559750)		Appelez-nous	-
35	W11839974		Crisper Light Cover (grey)   (Replaces: W11656716)		Appelez-nous	-
