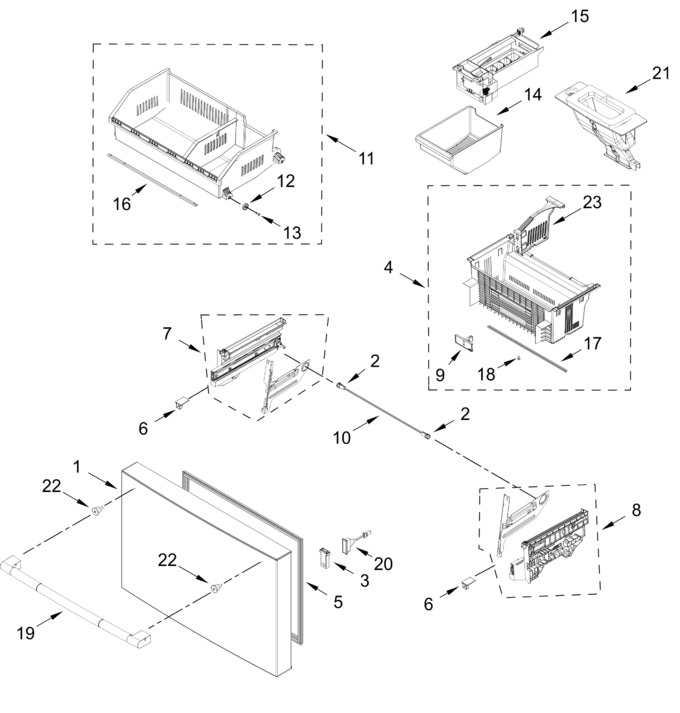

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11679691		Freezer Door Assembly (stainless)		Appelez-nous	-
2	WPW10277361		Gear Collar   (Replaces: W10277361)				$ 12.09
3	W11840149		Reed Switch Holder   (Replaces: W11658594)		Appelez-nous	-
4	W11840148		Bottom Basket Assembly   (Replaces: W11632629)		Appelez-nous	-
5	W11803538		Freezer Door Gasket (grey)   (Replaces: W11586644)		Appelez-nous	-
6	W11840145		Adapter Safety Clip   (Replaces: W11632622)		Appelez-nous	-
7	W11830079		Fc Adapter Assembly (left Hand)   (Replaces: W11632439)		Appelez-nous	-
8	W11830079		Fc Adapter Assembly (right Hand)   (Replaces: W11632447)		Appelez-nous	-
9	W11787215		Slider Basket   (Replaces: W11632631)				$ 25.75
10	W11787217		Shaft Rack Assembly (bottom)   (Replaces: W11611561)		Appelez-nous	-
11	W11840147		Top Basket Assembly   (Replaces: W11658111)		Appelez-nous	-
12	W11807405		Pan Roller   (Replaces: W10838061)		Appelez-nous	-
13	W10839805		Roller Axle		Appelez-nous	-
14	W11787307		Ice Bucket   (Replaces: W11611610)		Appelez-nous	-
15	W11788019		Icemaker Assembly   (Replaces: W11608631)				$ 194.26
16	W11798521		Pan Support   (Replaces: W11612780)		Appelez-nous	-
17	W11798520		Pan Support   (Replaces: W11604038)		Appelez-nous	-
18	W11816126		Screw   (Replaces: W11113841)		Appelez-nous	-
19	W11254135		Door Handle (stainless)   (Replaces: W11238823)				$ 449.09
20	W11793915		Reed Switch   (Replaces: W11553901)				$ 63.22
21	W11790664		Ice Maker Air Duct Assembly   (Replaces: W11644790)				$ 101.06
22	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.45
23	W11840146		Bottom Basket Divider   (Replaces: W11727687)		Appelez-nous	-
