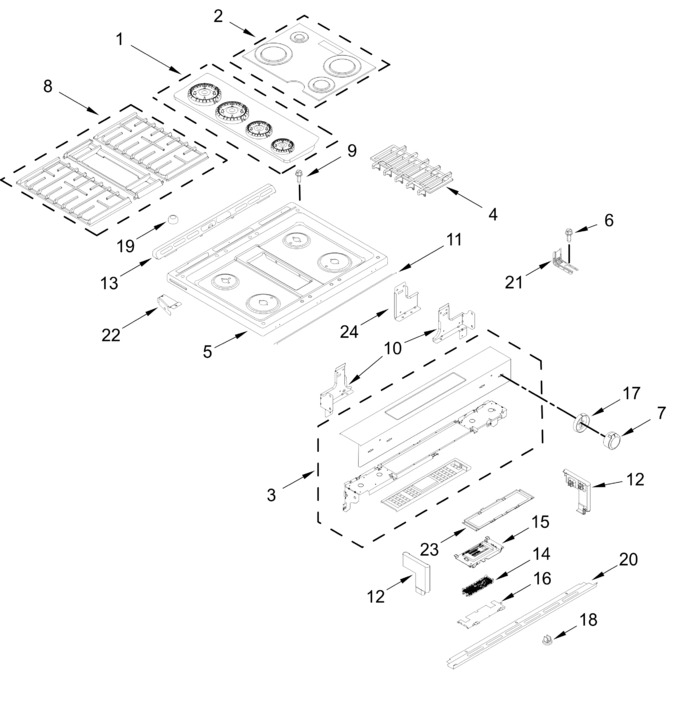

Blower Parts
Chassis Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11817157 | Surface Burner Kit (Replaces: W11366286) |
|
- | |||||
| 2 | W11834859 | Burner Cap Kit (black) (Replaces: W11352138) |
|
- | |||||
| 3 | W11844176 | Console Assembly, Upper (stainless) (Replaces: W11834036) |
|
- | |||||
| 4 | W11451445 | Grill, Air (black) (Replaces: W11383491) |
|
- | |||||
| 5 | W11117943 | Cooktop-gas (stainless) |
|
$ 436.80 | |||||
| 6 | 7101P48560 | Screw, Anti-tip |
|
- | |||||
| 7 | W11844163 | Single, Knob (stainless) (Replaces: W11823569) |
|
- | |||||
| 8 | W11451474 | Grate (black) (Replaces: W11382964) |
|
$ 378.97 | |||||
| 9 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 10 | W10289170 | Bracket,support (left) (Replaces: W11563529) |
|
$ 30.05 | |||||
| 11 | W11732692 | Cooktop Gasket (Replaces: W11687826) |
|
- | |||||
| 12 | W10555937 | Endcap (stainless, Left) |
|
$ 67.95 | |||||
| 13 | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 145.75 | ||||
| 14 | W11844177 | Control Mrc2 (Replaces: W11822047) |
|
- | |||||
| 15 | W11105615 | Display, Assembly (Replaces: W10759325) |
|
Immediately | $ 374.42 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 17 | W11844164 | Bezel (stainless) (Replaces: W11823571) |
|
- | |||||
| 18 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 13.16 | ||||
| 19 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 20 | W10743276 | Panel, Lower Console (stainless) |
|
$ 86.68 | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 23 | W10555923 | Bracket, User Interface |
|
$ 107.43 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 224.96 | |||||
| W10555940 | Endcap (stainless, Right) |
|
$ 67.95 | ||||||
| W11844170 | Harness, Main (Replaces: W11822327) |
|
- | ||||||
| W10162252 | Brace, Corner (right) |
|
$ 78.59 | ||||||
| W11198274 | Harness, Down Draft Fan Jumper |
|
$ 117.73 | ||||||
| W11563527 | Bracket, Support (right) |
|
- | ||||||
| W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | |||||
| W11123868 | Reducer, Venturi (choke) (Replaces: W10340851) |
|
$ 103.62 | ||||||
| W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 105.04 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
