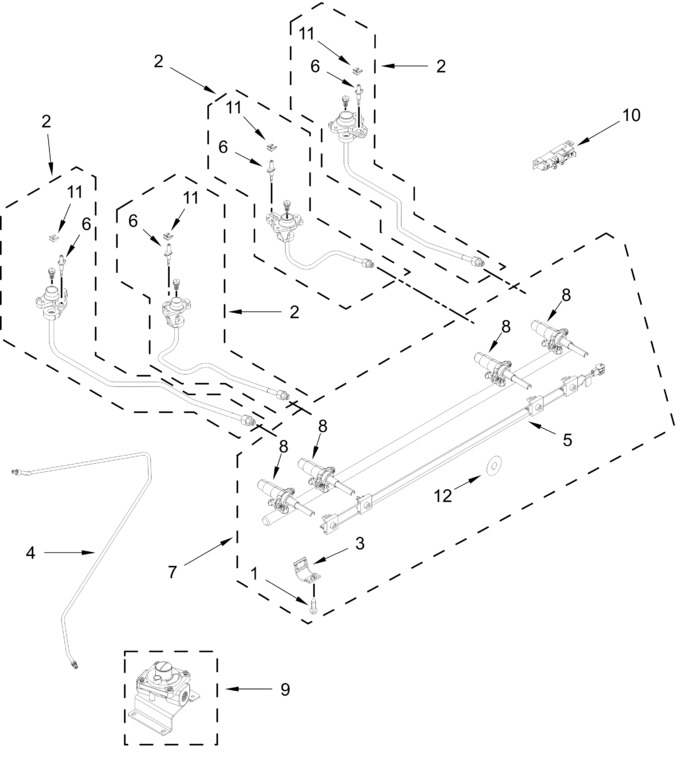

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W11451472		Orifice Assembly (17k)   (Replaces: W11186514)		Appelez-nous	-
3	W10949105		Bracket, Saddle Valve				$ 22.75
4	W10552945		Tube, Supply				$ 94.24
5	W10669619		Harness, Switch Spark				$ 177.10
6	W11661929		Electrode, Burner   (Replaces: W10669526)			Immediately	$ 50.21
7	W11416335		Manifold Assembly		Appelez-nous	-
8	W11241561		Valve, Gas   (Replaces: W10566062)			Immediately	$ 195.14
9	W10661850		Regulator And Bracket, Assembly				$ 131.25
10	W11693498		Module, Spark   (Replaces: W11349967)				$ 105.71
11	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
12	W10140571		Seal, Switch Shaft				$ 7.70
	W11126047		Kit, Lp Conversion   (Replaces: W10566083)			Immediately	$ 126.50
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	W11186526		Orifice Assembly (15k)			Immediately	$ 99.68
	W11186509		Orifice Assembly (5k)				$ 99.65
	W11186522		Orifice Assembly (9.2k)			Immediately	$ 99.30
	W11233561		Valve, Gas   (Replaces: W10566057)			Immediately	$ 264.72
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	W11666003		Electrode, Burner   (Replaces: W10669525)				$ 48.41
	ARI331AC8E6A0B32951011383800D6FC3B6		(left Front, Right Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
	W11451473		Valve, Gas   (Replaces: W11416332)				$ 122.56
	W11643126		Electrode, Burner   (Replaces: W10669524)			Immediately	$ 38.01
	W11661897		Electrode, Burner   (Replaces: W10669523)				$ 48.36
