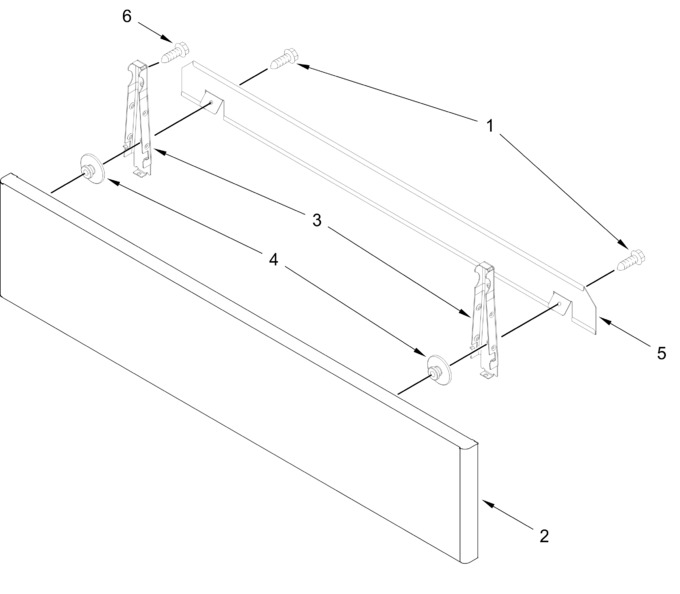

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 2 | W11844171 | Panel, Drawer Front (stainless) (Replaces: W11830753) |
|
- | |||||
| 3 | WPW10318026 | Bracket, Mounting (Replaces: W10318026) |
|
$ 39.27 | |||||
| 4 | 8004P02460 | Spacer, Panel |
|
- | |||||
| 5 | W11452957 | Baffle, Drawer Panel |
|
- | |||||
| 6 | W11739957 | Screw (Replaces: W10673879) |
|
- |
