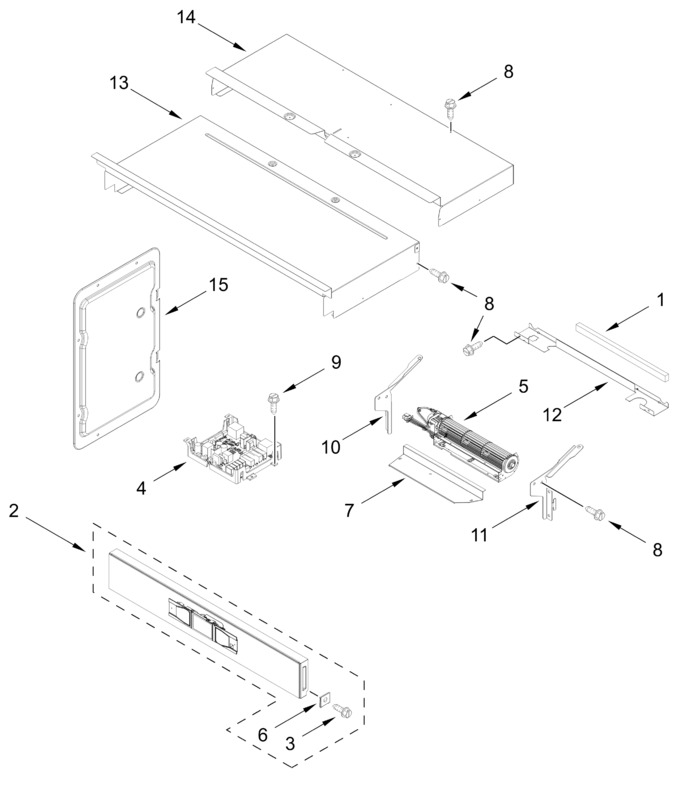

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.75
2	W11659270		Control Panel Assembly (white)   (Replaces: W11568108)		Appelez-nous	-
3	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.02
4	W11649350		Control, Copernicus   (Replaces: W11585754)			Immediately	$ 283.10
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 369.76
6	WP4450118		Nut   (Replaces: 4450118)				$ 7.95
7	W10681157		Cover, Combo Blower		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	7101P46060		Screw, Grounding		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10655462		Bracket, Blower (right)		Appelez-nous	-
12	W11754858		Divider, Chassis Back   (Replaces: W11664750)		Appelez-nous	-
13	W10318158		Cover, Top Front 30 In Chassis		Appelez-nous	-
14	W10588732		Cover, Top Back 30 In Chassis				$ 215.10
15	W11754860		Panel, Combo Chassis Side   (Replaces: W11659057)		Appelez-nous	-
	16515		Clip, Harness   (Replaces: 313438)				$ 19.55
	W11848206		Harness, Main   (Replaces: W11666057)		Appelez-nous	-
	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 58.86
	W11226264		Strap, Ground		Appelez-nous	-
	4448664		Clamp, Conduit				$ 20.39
	W11356990		Harness, Communication				$ 213.74
	W11256629		Harness, Signal		Appelez-nous	-
	W11555848		Harness, Input		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11539494		Harness, Inverter				$ 41.32
	W11578580		Jumper Harness, Communication   (Replaces: W11539527)				$ 28.80
	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 75.12
	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 22.35
