Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11186391 Deflector, Chassis (left) Appelez-nous -
2 W11186398 Deflector, Chassis (right) Appelez-nous -
3 W11712405 Receiver, Hinge (left)   (Replaces: W11239070) In-Stock Immediately $ 81.51

4 W11598152 Spacer, Base   (Replaces: W11558603) In-Stock Immediately $ 17.28

5 W11811612 Latch, Motorized   (Replaces: W11795407) In-Stock Immediately $ 66.53

6 W11818414 Top, Chassis   (Replaces: W11729557) Appelez-nous -
7 W11292252 Light Assembly   (Replaces: W11205574) In-Stock Immediately $ 102.36

8 W10283021 Support, Base (right) Appelez-nous -
9 W11818416 Deflector, Fan   (Replaces: W11729909) Appelez-nous -
10 W11743956 Vent, Combo Center   (Replaces: W11701588) Special Order $ 163.13

11 W11692454 Gasket   (Replaces: W11608108) Special Order $ 139.92

12 W11256424 Cover, Vent Exhaust Appelez-nous -
13 W11165274 Side, Chassis Special Order $ 77.13

14 W11223327 Back, Chassis Appelez-nous -
15 ARIF1DCB018B2324CAD9D04009CD738647B Liner, Oven (not Serviceable) Appelez-nous -
16 W11598120 Probe, Sensor   (Replaces: W11346074) In-Stock Immediately $ 39.76

17 WPW10472384 Bulb, Light   (Replaces: W10472384) In-Stock Immediately $ 92.48

18 WP4449751 Thermostat (tod)   (Replaces: 4449751) In-Stock Immediately $ 111.84

19 W11598115 Base, Chassis   (Replaces: W11135103) Special Order $ 72.25

20 W11467336 Bottom Vent Assembly (black) Special Order $ 191.22

21 W11244446 Duct, Bottom Chassis Special Order $ 66.90

22 W11818384 Support, Base (left)   (Replaces: W11738531) Appelez-nous -
23 W11135135 Support, Air Channel Special Order $ 34.43

24 W11731183 Spacer, Bottom Chassis Duct   (Replaces: W11135125) Special Order $ 37.00

25 W11598125 Bumper And Screw   (Replaces: W11166315) Special Order $ 22.26

26 WPW10519866 Lens, Light   (Replaces: W10472386) Special Order $ 91.74

27 7101P42660 Screw Appelez-nous -
28 WPW10254050 Screw   (Replaces: W10254050) Special Order $ 8.11

29 W11235457 Trim, Left Side (black) Special Order $ 75.92

30 W11235458 Trim, Right Side (black) Special Order $ 75.92

31 W11134657 Duct, Lower Chassis Back Appelez-nous -
32 W11819303 Cover, Connector   (Replaces: 8285593) Appelez-nous -
33 W11256423 Base, Vent Exhaust Appelez-nous -
34 WPY706189 Screw   (Replaces: W11249635) In-Stock Immediately $ 7.19

35 W11598150 Cover, Suction (left)   (Replaces: W11167419) Special Order $ 70.53

36 W11714646 Trim, Bottom Vent (black)   (Replaces: W11624689) Special Order $ 86.03

37 W11240525 Tube, Vent   (Replaces: W11085298) Special Order $ 24.32

38 W11598151 Cover, Suction (right)   (Replaces: W11186675) Special Order $ 70.53

39 W11754870 Rivet (black)   (Replaces: W11696855) Appelez-nous -
40 W11818393 Bracket, Side   (Replaces: W11751065) Appelez-nous -
41 W11533682 Cover, Wifi Appelez-nous -
W11712406 Receiver, Hinge (right)   (Replaces: W11239072) Special Order $ 81.45

W11688564 Insulation, Wrap   (Replaces: W11188284) Appelez-nous -
ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -
W11818396 Insulation, Cavity   (Replaces: W11704930) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

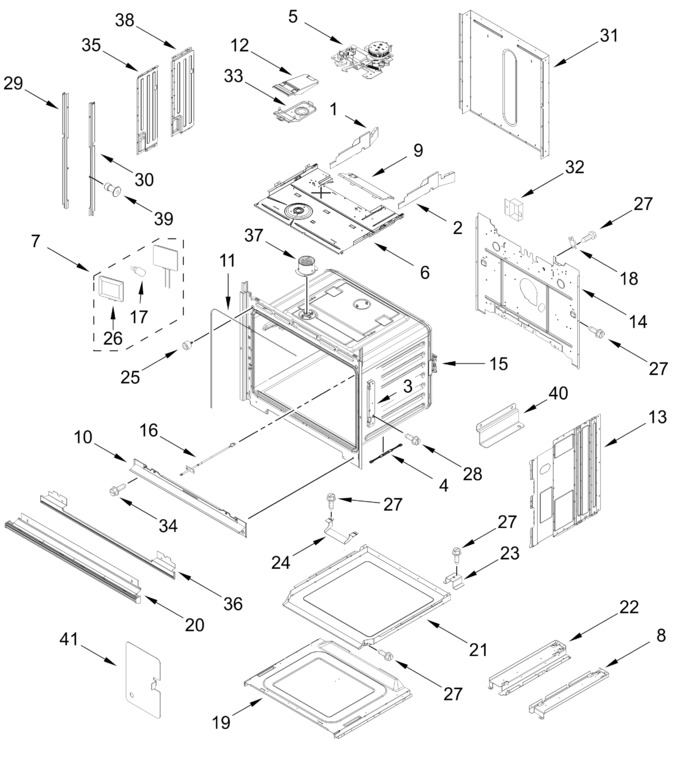

Diagram for WOEC5030LW05
