Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11617232 Element, Broil   (Replaces: W11238160) Special Order $ 131.38

2 W11218798 Rack, Oven   (Replaces: W11122597) In-Stock Immediately $ 358.35

3 W10318198 Tray, Hidden Bake Special Order $ 195.83

4 7101P43460 Screw Appelez-nous -
5 7101P42660 Screw Appelez-nous -
6 W10282957 Crossbar, Hidden Bake Tray Special Order $ 47.47

7 W11545804 Element, Bake   (Replaces: W11292248) In-Stock Immediately $ 102.53

8 W11617227 Convect Motor Assembly   (Replaces: W11398058) In-Stock Immediately $ 159.60

9 W11548755 Nut, Acorn (left Hand Thread)   (Replaces: W11433702) Special Order $ 15.38

10 W11548753 Blade, Fan   (Replaces: W11425715) In-Stock Immediately $ 157.63

11 W11489860 Plate, Ring Element Special Order $ 19.11

12 W10359278 Baffle, Convection Special Order $ 249.22

13 W10850807 Screw   (Replaces: W10720084) Special Order $ 7.77

14 W11602629 Plate, Convect Motor   (Replaces: W11251715) Appelez-nous -
15 W11706806 Insulation, Convect Motor   (Replaces: W11251716) Appelez-nous -
16 W11617229 Cover, Convect Plate   (Replaces: W11398057) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

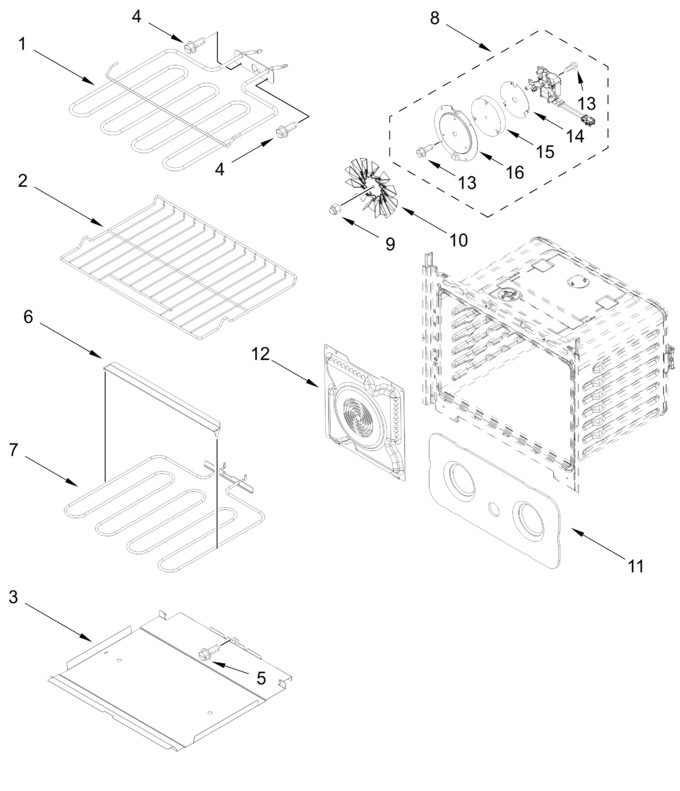

Diagram for WOEC5030LW05
