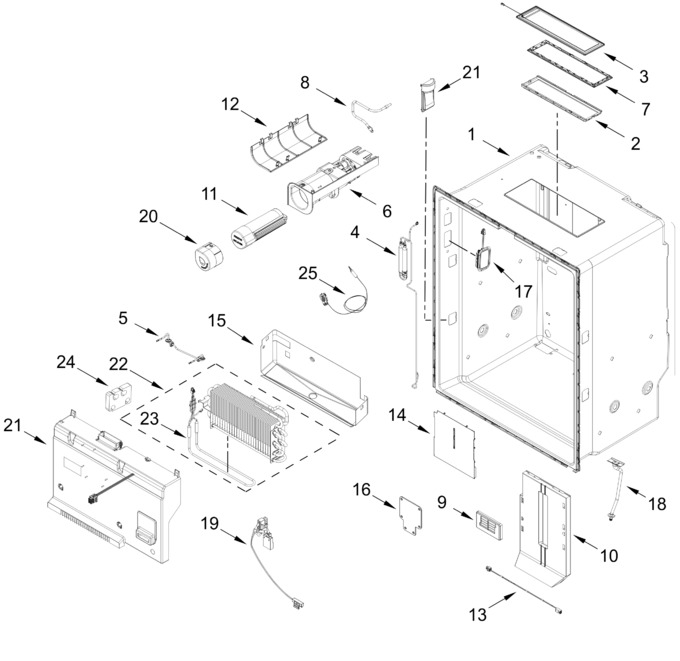

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
2	W11839162		Sky Light Lens (white Fog)   (Replaces: W11612596)		Appelez-nous	-
3	W11839160		Sky Light Led Panel   (Replaces: W11549348)		Appelez-nous	-
4	W11842373		Water Reservoir   (Replaces: W11768673)		Appelez-nous	-
5	W11832302		Suction Tube Assembly   (Replaces: W11682877)		Appelez-nous	-
6	W11835056		Water Filter Housing   (Replaces: W11803103)				$ 227.89
7	W11844109		Sky Light Trim (grey)   (Replaces: W11836233)		Appelez-nous	-
8	W11807586		Filter Outlet Tube   (Replaces: W11768632)		Appelez-nous	-
9	W11786940		Air Return Duct Grille   (Replaces: W11608374)		Appelez-nous	-
10	W11832311		Air Tower Assembly   (Replaces: W11547384)		Appelez-nous	-
11	EDRARXD1B		Water Filter   (Replaces: W11536439)			Immediately	$ 49.99
12	W11759319		Water Filter Housing Cover   (Replaces: W11611458)		Appelez-nous	-
13	W11787131		Pantry Jumper Assembly   (Replaces: W11717382)		Appelez-nous	-
14	W11832312		False Wall   (Replaces: W11725807)		Appelez-nous	-
15	W11832307		Rc Evaporator Heat Shield   (Replaces: W11541797)		Appelez-nous	-
16	W11787791		Port Lid Assembly   (Replaces: W11724694)		Appelez-nous	-
17	W11817282		Led Light Module   (Replaces: W11598836)				$ 29.87
18	W11832349		Rc Evaporator Drain Tube   (Replaces: W11625314)		Appelez-nous	-
19	W11832308		Rc Evaporator Wire Assembly (includes Thermistor)   (Replaces: W11559745)		Appelez-nous	-
20	W11759320		Water Filter Housing Plug (grey)   (Replaces: W11669932)				$ 11.11
21	W11832310		Rc Evaporator Cover Assembly (includes Damper)   (Replaces: W11607828)		Appelez-nous	-
22	W11832306		Rc Evaporator Assembly   (Replaces: W11646274)		Appelez-nous	-
23	W11560605		Rc Defrost Heater		Appelez-nous	-
24	W11842355		Heater Bracket Gasket (rc Evaporator)   (Replaces: W11680604)		Appelez-nous	-
25	W11787118		Thermistor, Refrigerator Temperature   (Replaces: W11669736)		Appelez-nous	-
