Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11803377 Compressor   (Replaces: W11754926) Special Order $ 273.98

2 W10820084 Screw Appelez-nous -
3 W11787438 Compressor Baseplate   (Replaces: W11543386) Appelez-nous -
4 W11109499 Drier (service Drier Without Dye)   (Replaces: W10805035) In-Stock Immediately $ 35.21

5 W11787385 Drain Tube Extension   (Replaces: W11559668) Special Order $ 56.04

6 W11832348 3-way Valve Assembly   (Replaces: W11558772) Appelez-nous -
7 W11807409 Baseplate Gasket   (Replaces: W11642492) Appelez-nous -
8 W11787346 Water Tray   (Replaces: W11678106) Appelez-nous -
9 W11787966 Roller Cover   (Replaces: W11613273) Appelez-nous -
10 W11417341 Screw Special Order $ 12.66

11 W11807413 Rear Shroud   (Replaces: W11611636) Appelez-nous -
12 W11807406 Front Shroud   (Replaces: W11613272) Appelez-nous -
13 W10774846 Roller Special Order $ 81.68

14 3400524 Screw   (Replaces: W10142287) Special Order $ 11.95

15 W11678963 Grommet, Compressor   (Replaces: W10806346) Special Order $ 7.66

16 W11787355 Condenser Assembly   (Replaces: W11668494) Appelez-nous -
17 W11787365 Condenser Fan Assembly   (Replaces: W11613932) Special Order $ 86.27

18 W11787845 Precooler Assembly   (Replaces: W11610529) Appelez-nous -
19 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 7.25

20 W11823809 Inverter Connector Cover   (Replaces: W11682571) Appelez-nous -
21 W11835060 Inverter Box Assembly   (Replaces: W11786369) Appelez-nous -
22 W11553819 Sound Insulation   (Replaces: 2215468) In-Stock Immediately $ 13.29

23 W11787358 Suction Tube Assembly   (Replaces: W11614556) Appelez-nous -
24 W11842354 Unit Wire Assembly (includes Power Cord)   (Replaces: W11781531) Appelez-nous -
25 W11787124 Retainer Bracket   (Replaces: W11684787) Appelez-nous -
ARIA203FEA88A0C0545C484B4E1C20B771B Refrigerant Charge Appelez-nous -
ARIDB5BB2DB0DC0B155401A5AB1451BE2DB 65 Grams (r600a) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

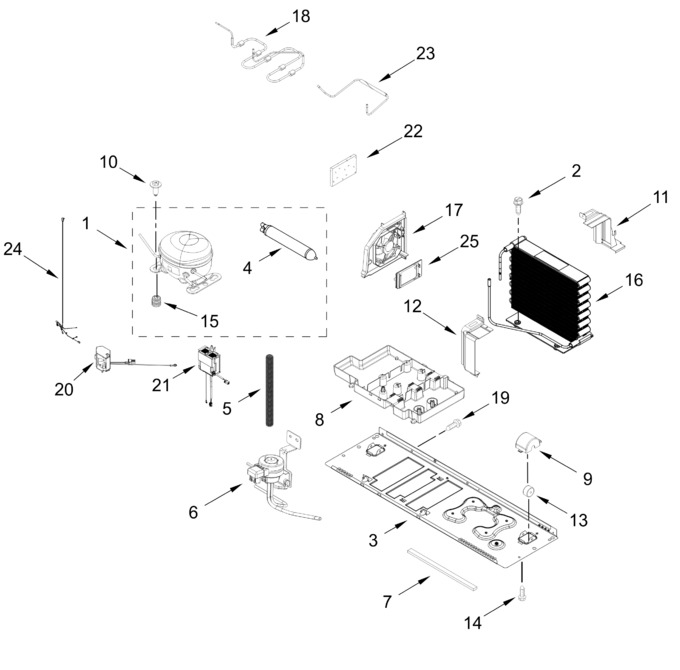

Diagram for KRFC736SPS01
